Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

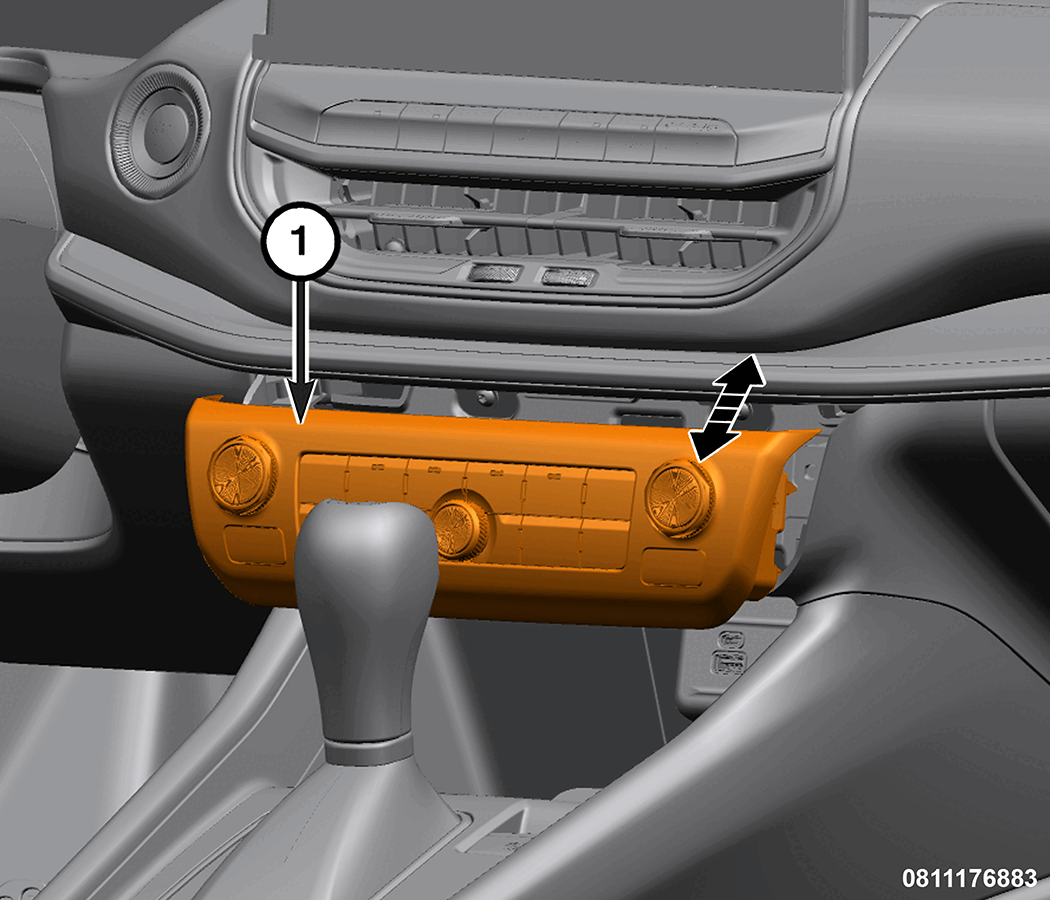

1. Position the ICS (1) to the instrument panel.
2. Connect the wire harness connector to the ICS (1).
3. Install the ICS (1) into the instrument panel, pressing firmly to verify the retaining clips are fully seated into the instrument panel.
4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
