Removal And Installation: Removal

WARNING: This page is about a different car, the 2021 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Propeller shaft removal is a two-person operation. Never allow propeller shaft to hang from the center bearing, or while only connected to power transfer unit (PTU) or rear driveline module flanges. A helper is required. If a propshaft section is hung unsupported, damage may occur to the joint, boot, and center bearing from over-angulation. This may result in driveline vibrations.

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the driveshaft heat shield. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
    GC0186464Courtesy of CHRYSLER GROUP, LLC

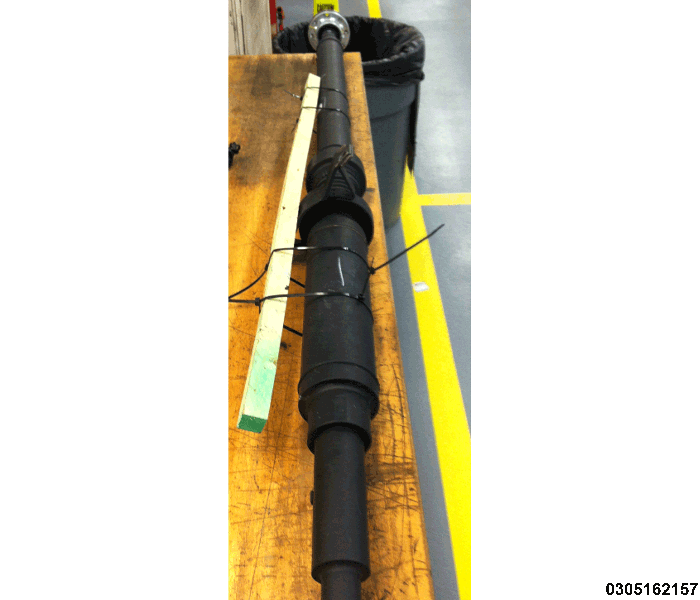

  3. Using a long piece of wood or similar, fasten it to the driveshaft with several cable ties in order to keep the driveshaft from over-articulating during removal and installation.
    GC0165736Courtesy of CHRYSLER GROUP, LLC

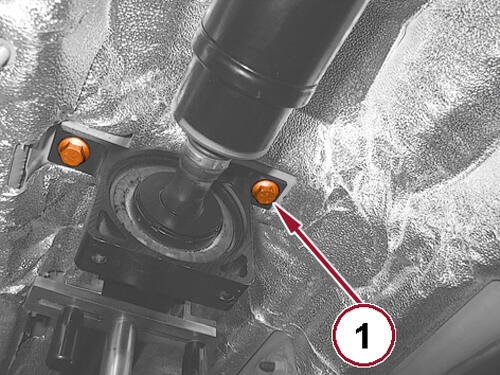

  4. Loosen the driveshaft center support bolts (1).
    GC0165982Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The dust cover must be replaced every time the driveshaft is removed.

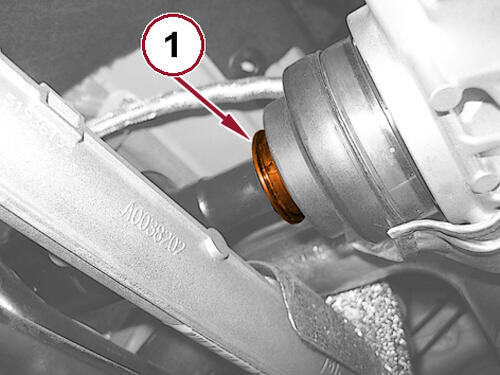

  5. Slide the dust cover (1) at the front of the driveshaft away from the Power Transfer Unit (PTU) to access the snap ring.
    GC0179336Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Shown with Power Transfer Unit (PTU) removed for clarity.

    NOTE:

    The snap ring must be replaced every time the driveshaft is removed.

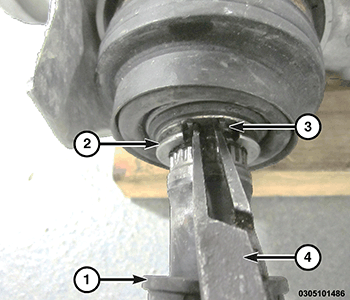

  6. Expand the snap ring (3) at the PTU (2) using suitable snap ring pliers (4).
    GC0163310Courtesy of CHRYSLER GROUP, LLC

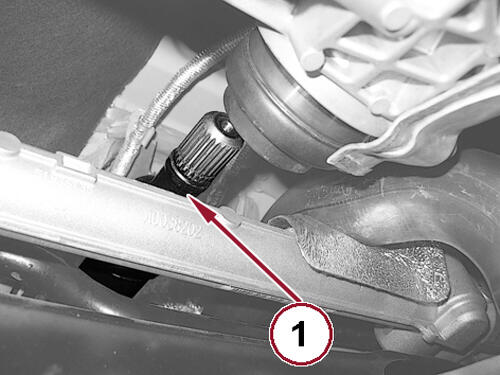

  7. Remove the previously loosened driveshaft center support bolts.
    GC0179040Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The dust cover must be replaced every time the driveshaft is removed.

  8. Slide the dust cover (2) at the rear of the driveshaft (3) towards the Rear Driveline Module (RDU) (1) to access the snap ring.
    GC0179400Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The snap ring must be replaced every time the driveshaft is removed.

  9. Expand the snap ring (2) at the RDU using suitable snap ring pliers (2).
    GC0165111Courtesy of CHRYSLER GROUP, LLC
  10. Disconnect the driveshaft from the pinion of the RDU (1).
    GC0165215Courtesy of CHRYSLER GROUP, LLC

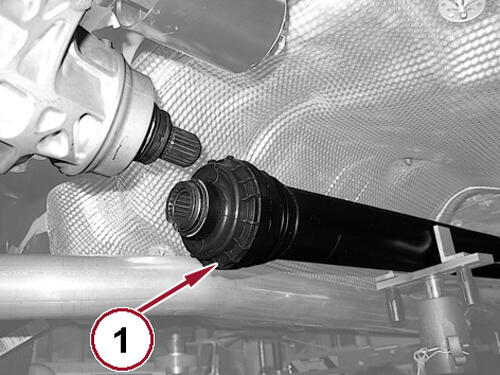

  11. Lower the driveshaft (1) until the rear joint of the shaft is under the RDU as shown in illustration.
    NOTE:

    Pay close attention to avoid excessive articulation between the two halves of the driveshaft during removal.

  12. Remove the drive shaft, guiding it away from the front suspension crossmember.
