EGR System

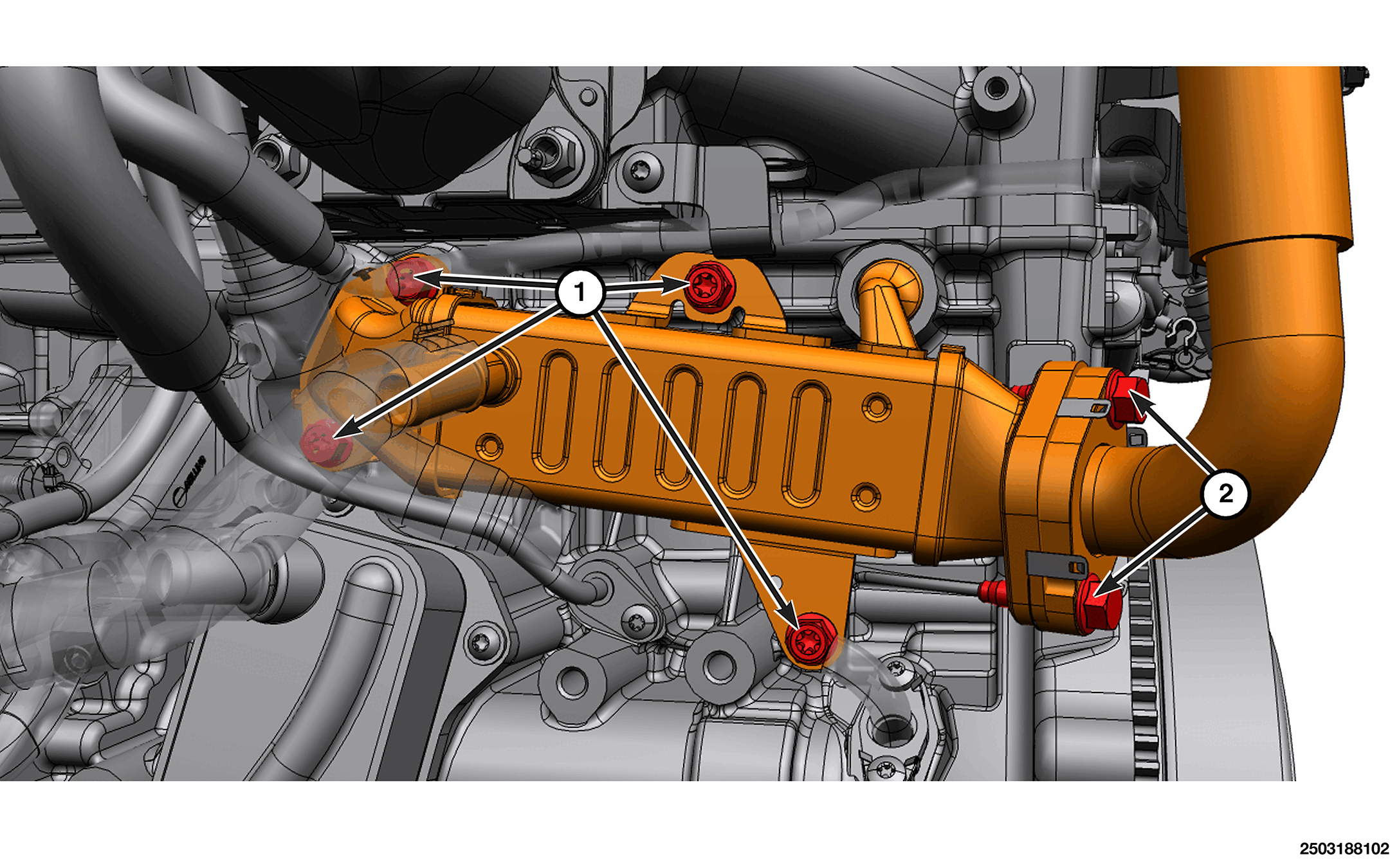

TORQUE SPECIFICATIONS - EGR SYSTEM (1 OF 2)
| 1 | EGR Cooler To Cylinder Block | 25 N. m (18 Ft. Lbs.) | - |
| 2 | EGR Pipe To EGR Cooler | 30 N. m (22 Ft. Lbs.) | - |

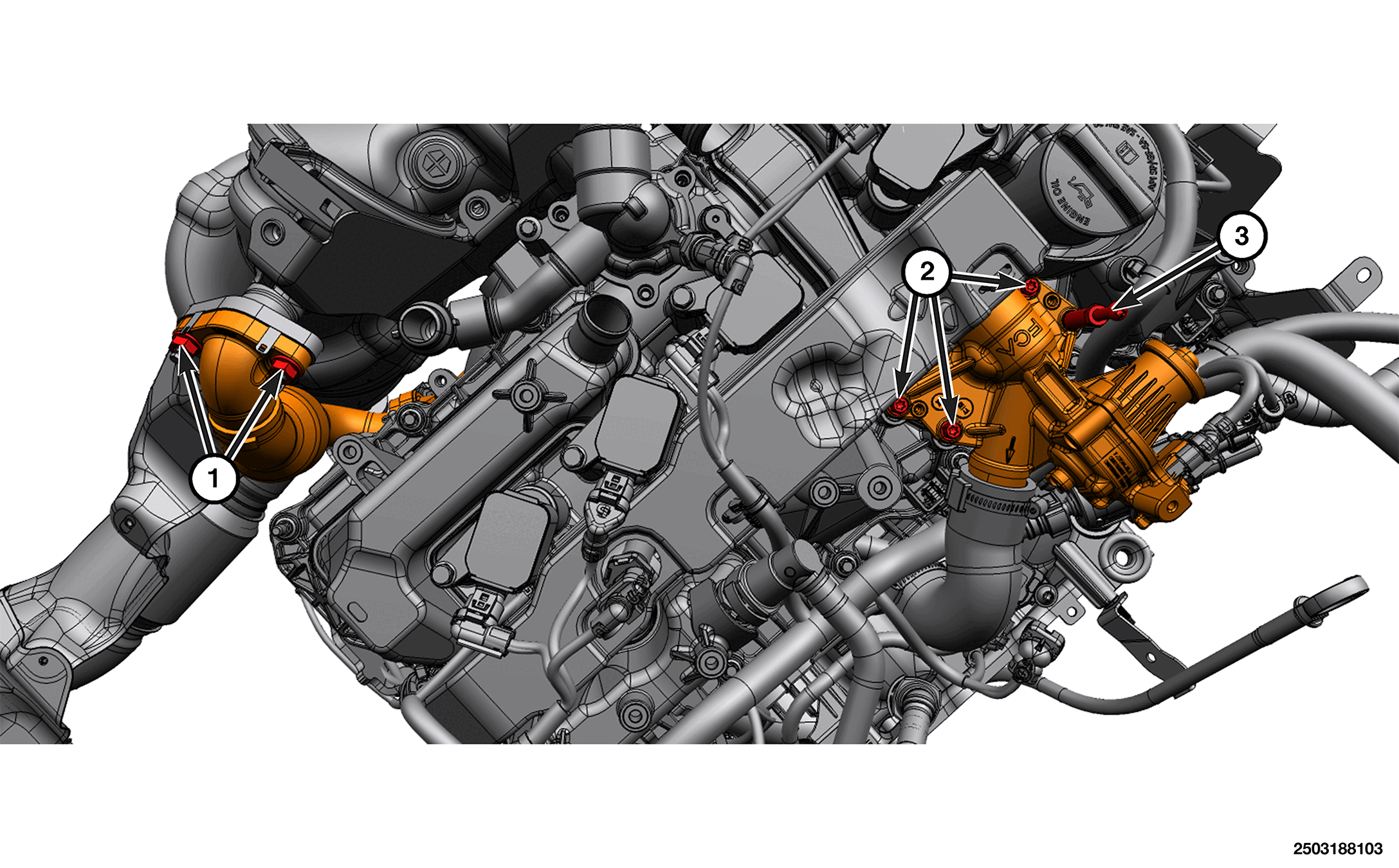

TORQUE SPECIFICATIONS - EGR SYSTEM (2 OF 2)
| 1 | EGR Pipe To Catalyst | 19 N. m (14 Ft. Lbs.) | - |
| 2 | EGR Valve To Valve Cover | 11 N. m (8 Ft. Lbs.) | - |
| 3 | Engine Cover Mounting Stud | 11 N. m (8 Ft. Lbs.) | - |
