Front Passenger Display Module

REMOVAL

1. Remove the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL AND INSTALLATION .
2. Remove the right air outlet. Refer to OUTLET, AIR, REMOVAL AND INSTALLATION .

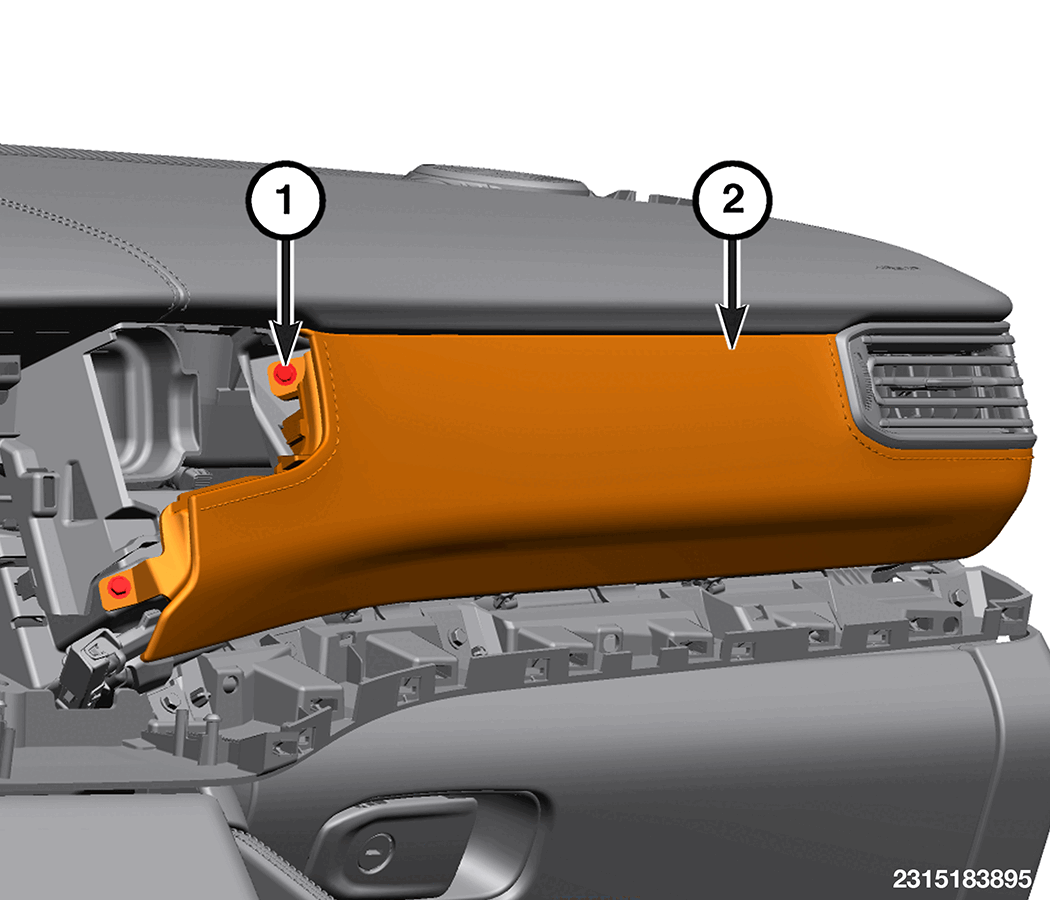

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Front Passenger Display Module

3. Remove the fasteners from the inboard side of the Front Passenger Display Module (FPDM).

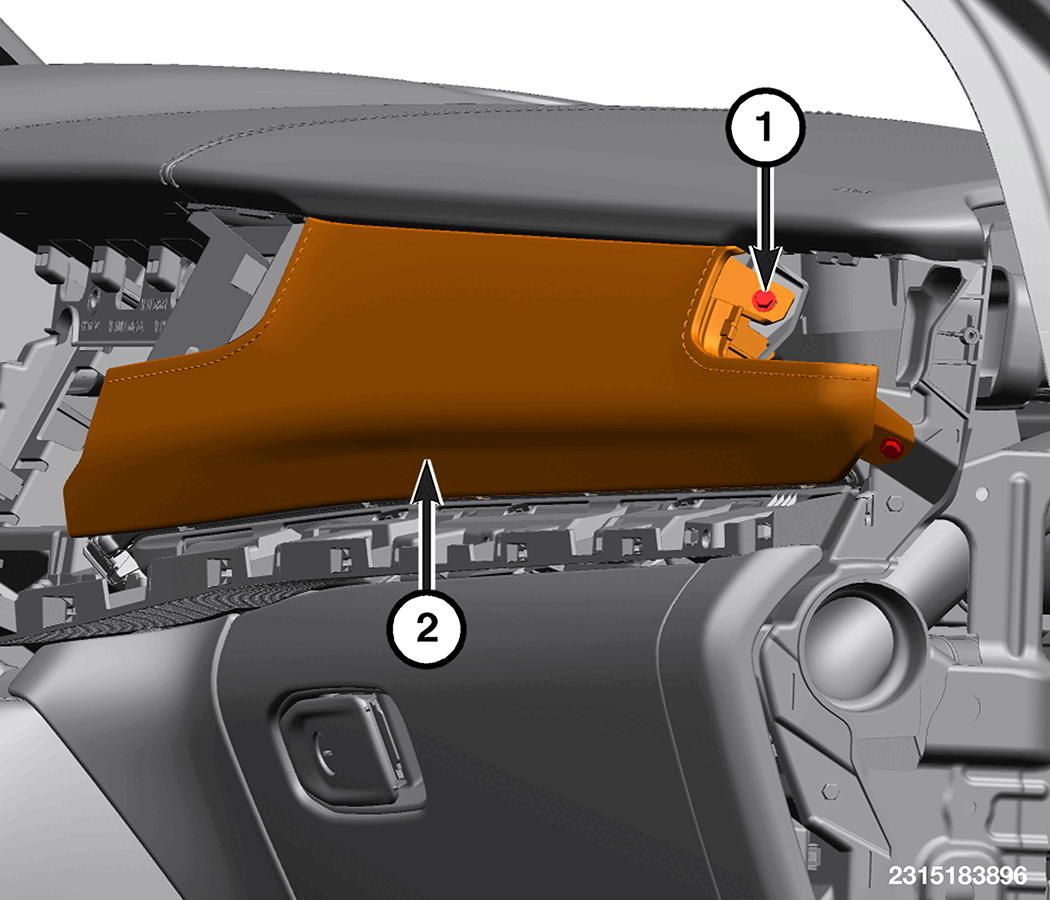

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Front Passenger Display Module

4. Remove the fasteners from the outboard side of the FPDM.

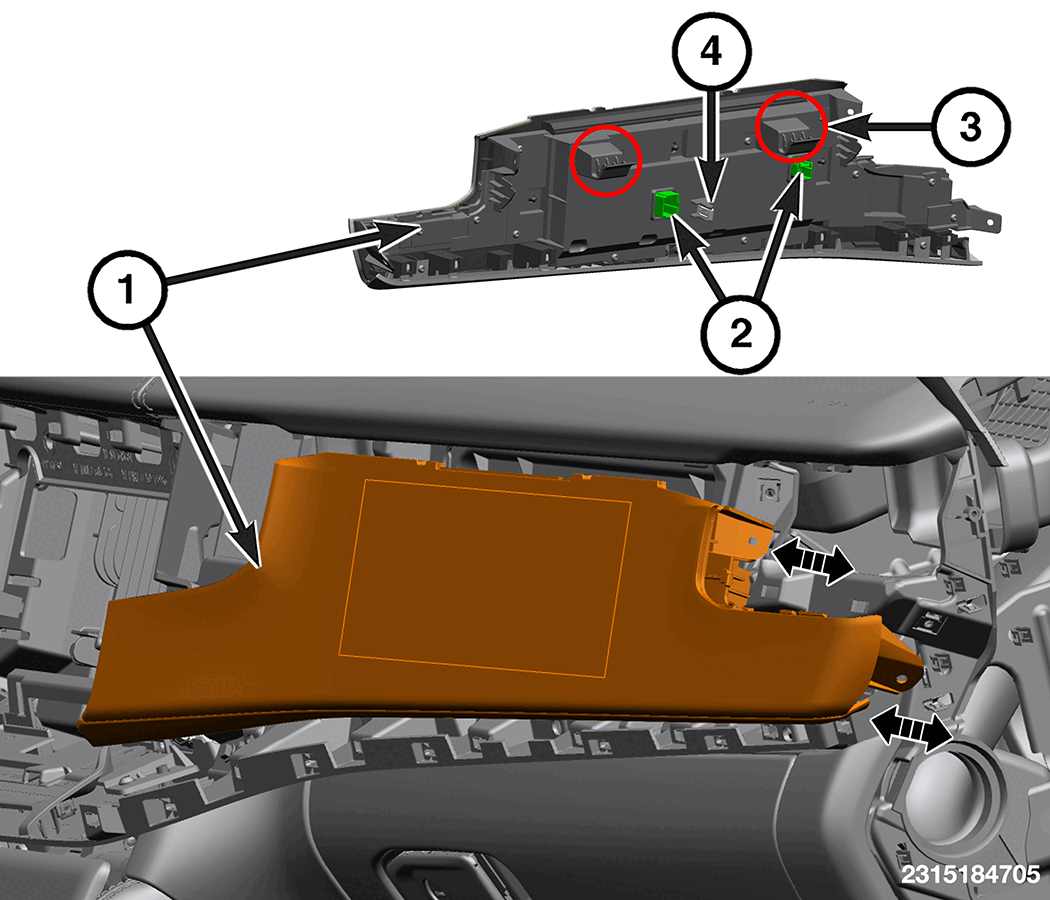

   Courtesy of CHRYSLER GROUP, LLC

   1 - Front Passenger Display Module

   2 - Wire Harness Connectors

   3 - Upper Tabs

   4 - Retaining clip

5. Using a trim stick or equivalent, carefully release the retaining clip from the lower side of the FPDM.
6. Swing the lower end of the FPDM rearward to release the upper tabs.
7. Disconnect the wire harness connectors and remove the FPDM from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• All fasteners are tightened securely.
• Hand tap panels to seat fully.
• Verify panel alignment and tab engagement.
