Disassembly And Assembly

DISASSEMBLY

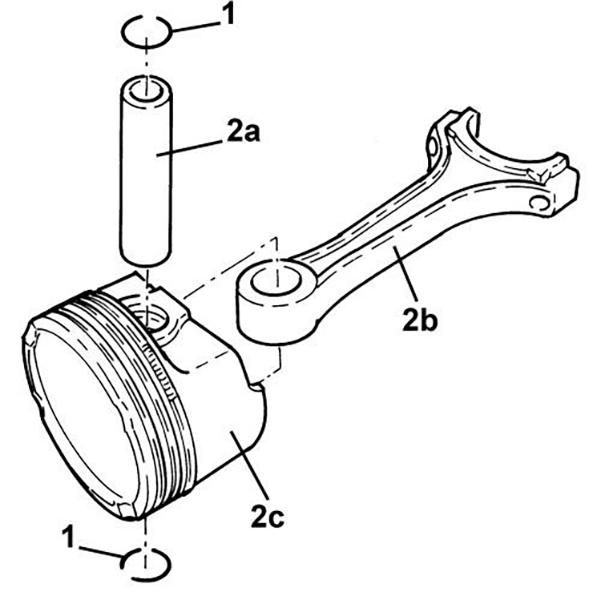

GC0208623Courtesy of CHRYSLER GROUP, LLC
  1. Remove the retaining rings (1).
  2. Remove the pin (2a) and separate connecting rods (2b) from pistons (2c).

ASSEMBLY

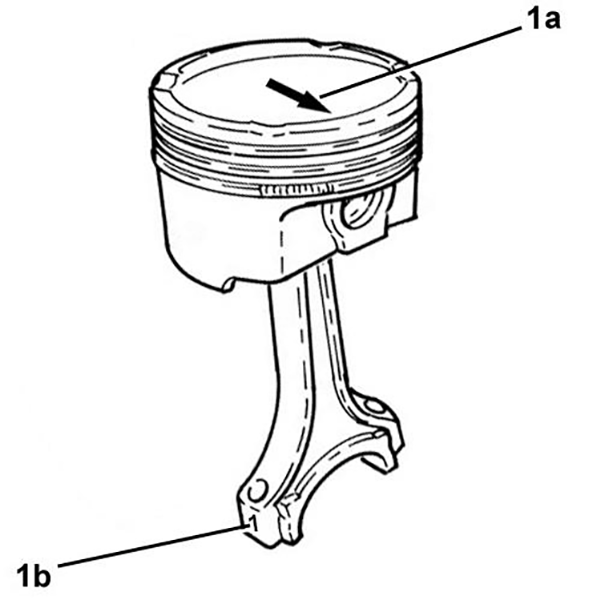

GC0208622Courtesy of CHRYSLER GROUP, LLC
  1. Assemble the connecting rods to the pistons so that the arrow stamped on the piston crown (1a) and the number stamped on the big end (1b) are positioned as shown in the figure.
  2. Insert the pins and secure them using the retaining rings.
