Pitman Arm: Notes

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Disconnect the track bar from the frame. Refer to TRACK BAR, FRONT, REMOVAL AND INSTALLATION .

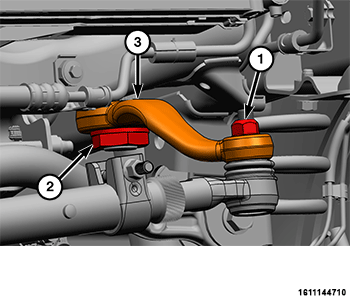

   Courtesy of CHRYSLER GROUP, LLC

   1 - Drag Link Inner Nut

   2 - Pitman Arm Nut

   3 - Pitman Arm

   NOTE:

   Hold the end of the ball stud with a wrench when removing or installing the nuts to prevent damage to the tie-rod.

3. Remove the drag link inner nut.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Pitman Arm

   2 - Remover, Ball Joint 9360

   3 - Drag Link

4. Using the Ball Joint Remover (special tool #9360, Remover, Ball Joint) or equivalent, separate the drag link from the pitman arm.
5. Mark the steering gear shaft and pitman arm for installation reference.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Drag Link Inner Nut

   2 - Pitman Arm Nut

   3 - Pitman Arm

6. Remove and DISCARD  the pitman arm nut.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Remover, Pitman Arm 9615A

   2 - Pitman Arm

7. Using (special tool #9615A, Remover, Pitman Arm) or equivalent, remove the pitman arm from the steering gear.

INSTALLATION

During installation, torque the fasteners to the specifications in the torque table(s) below.

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Hold the end of the ball stud with a wrench when removing or installing the nut to prevent damage to the tie-rod.
• Install a NEW  one piece pitman arm nut w/washer.
• Perform the toe set. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .

TORQUE SPECIFICATIONS
