Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Install the stabilizer bar (1).

   Courtesy of CHRYSLER GROUP, LLC

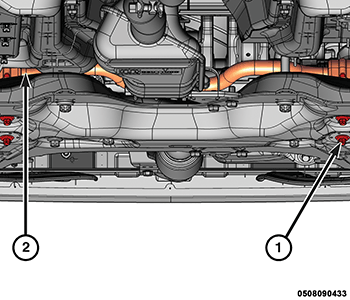

2. Install the four stabilizer bar bolts (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
3. Install the subframe. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION or CROSSMEMBER, REAR SUSPENSION, REMOVAL AND INSTALLATION or CROSSMEMBER, REAR SUSPENSION, REMOVAL AND INSTALLATION .
4. Install both stabilizer bar links. Refer to LINK, STABILIZER BAR, REMOVAL AND INSTALLATION .
