Torque Specifications

Courtesy of CHRYSLER GROUP, LLC

TORQUE SPECIFICATIONS

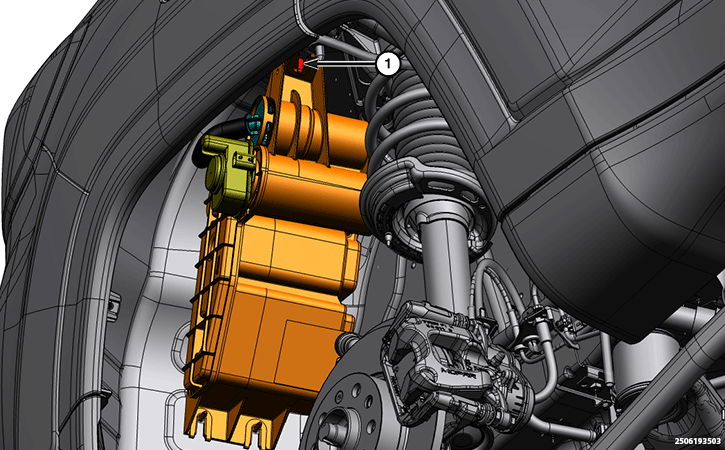

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Evaporative Canister to Vehicle - Nuts	9 Nm (80 In. Lbs.)	-
-	PCV Valve	1/4 Turn	-

Courtesy of CHRYSLER GROUP, LLC

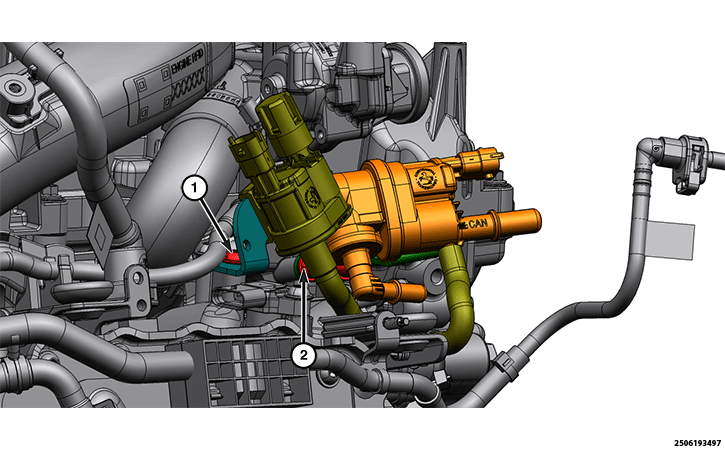

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	OBD Valve Bracket Bolts	Tighten Securely	-
2	Purge Valve Bracket Bolts	Tighten Securely	-
