Fore Link: Installation

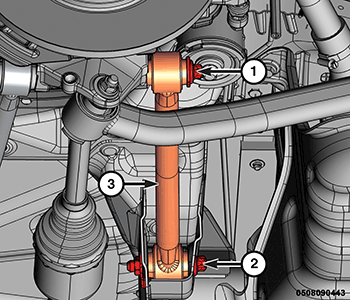

- Position the fore link (3) to the vehicle.
- Install the fore link inner bolt (2) and fore link outer bolt (1).
- With a suitable jack, raise the rear suspension to the proper torque specification. Refer to WHEEL ALIGNMENT, TECHNICAL SPECIFICATIONS .
- Tighten the fore link inner bolt (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Tighten the fore link outer bolt (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Install the tire and wheel assembly. Refer to TIRES & WHEELS, REMOVAL AND INSTALLATION .
- Remove the support and lower the vehicle.
- Perform a wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
