Description And Operation
DESCRIPTION
 Courtesy of CHRYSLER GROUP, LLC
|

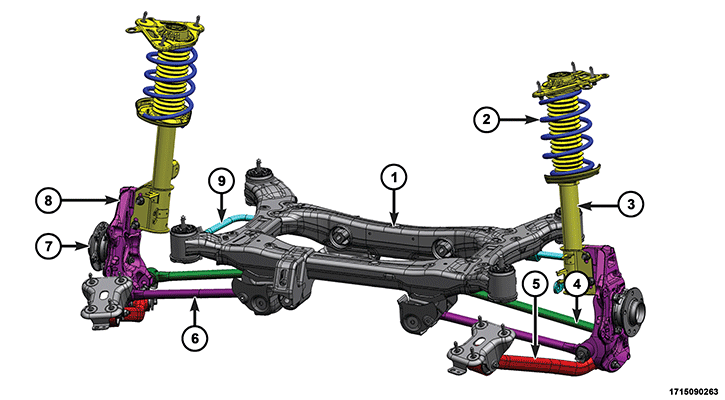

The rear suspension consists of the following major components:
| 1. |
Subframe |
| 2. |
Coil Spring |
| 3. |
Strut |
| 4. |
Rear Lower Control Arm |
| 5. |
Trailing Link |
| 6. |
Front Lower Control Arm |
| 7. |
Hub and Bearing |
| 8. |
Knuckle |
| 9. |
Stabilizer Bar |
