Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

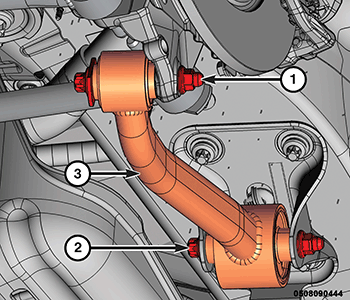

1. Position the trailing link (3) and install the front trailing link bolt (2). DO NOT TIGHTEN AT THIS TIME.
2. Install the trailing link rear bolt (1). DO NOT TIGHTEN AT THIS TIME.
3. With a suitable jack, raise the rear suspension to the proper torque specification. Refer to WHEEL ALIGNMENT, TECHNICAL SPECIFICATIONS .
4. Tighten the trailing link front nut and bolt (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
5. Tighten the trailing link rear bolt (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
6. Install the tire and wheel assembly. Refer to TIRES & WHEELS, REMOVAL AND INSTALLATION .
7. Remove the support and lower the vehicle.
