Torque Specifications - Transmission Mount
TORQUE SPECIFICATIONS - TRANSMISSION MOUNT

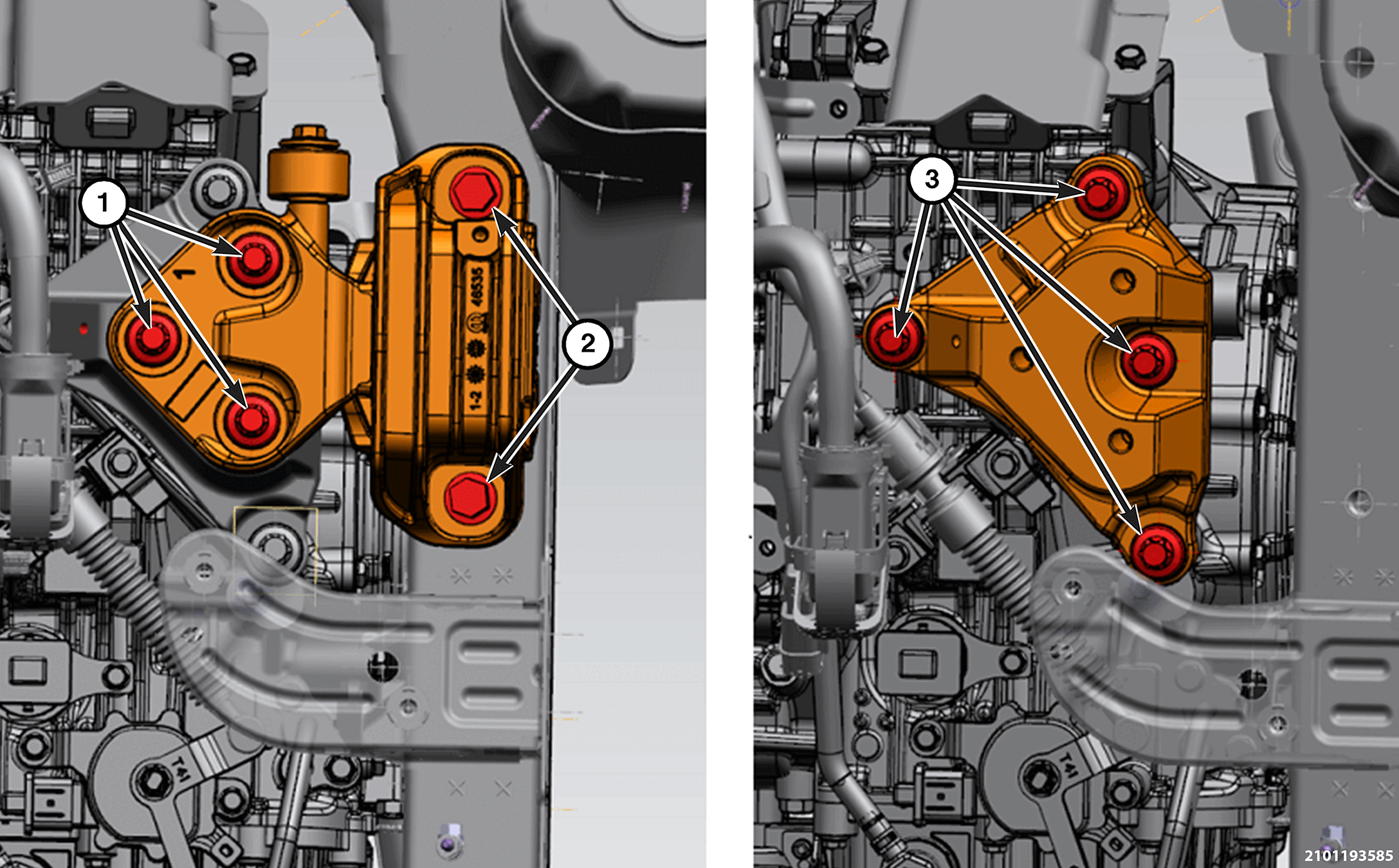

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Transmission Isolator to Transmission Adaptor Bolts | 40 N.m + 52° (30 Ft. Lbs. + 52°) | - |
| 2 | Transmission Isolator to Frame Bolts | 100 N.m (74 Ft. Lbs.) | - |
| 3 | Transmission Adaptor To Transmission Bolts | 40 N.m + 52° (30 Ft. Lbs. + 52°) | - |
