Removal And Installation: Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the cover (2) from the door panel (1).
- Remove the bolt (3) from door panel (1)

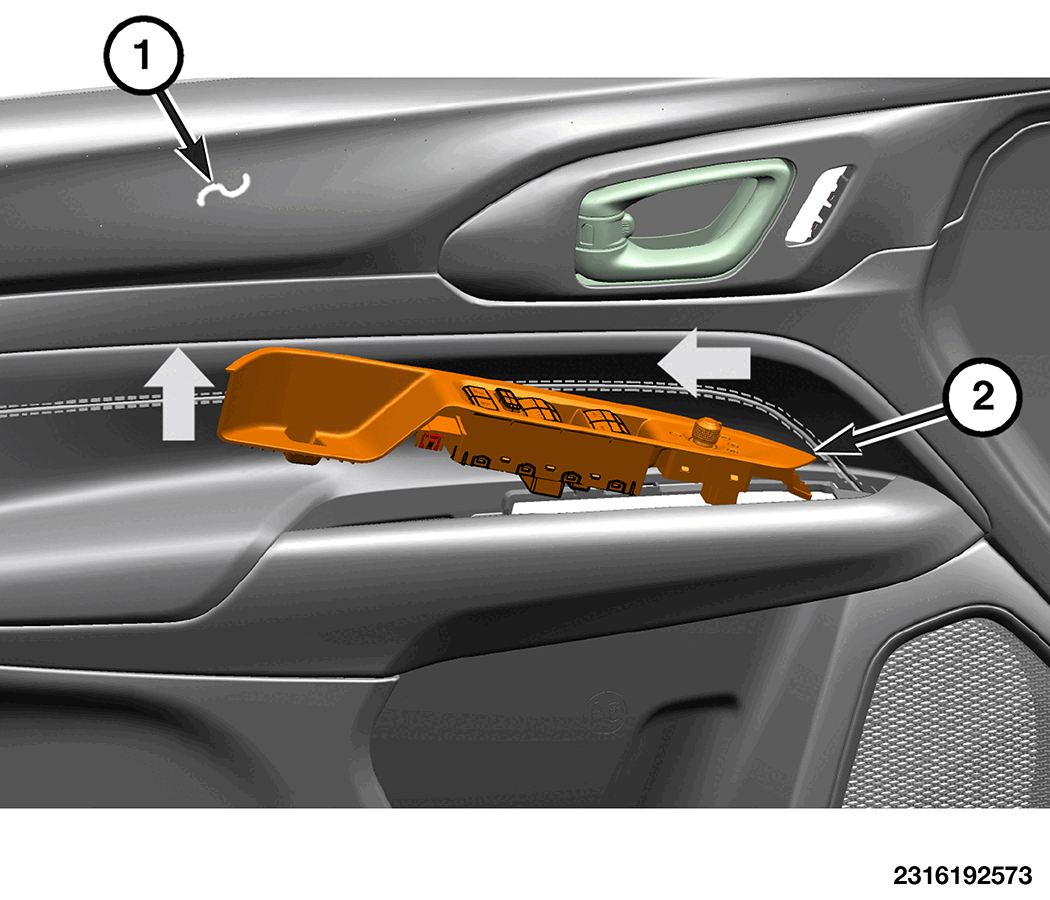

- Lift the switch bezel (2) up and then lift out of the door panel (1).
- Disconnect the wiring harness connector.
- Carefully disengage the switch bezel (1) from the switch bank (2), by releasing the switch bezel retaining clips.
