Wheel Speed Sensor
Wheel Speed Sensor
Courtesy of CHRYSLER GROUP, LLC

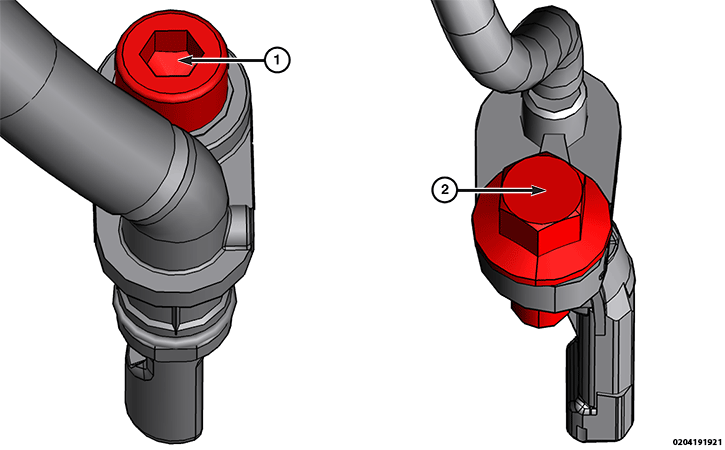

CALLOUT
DESCRIPTION
SPECIFICATION
COMMENT
1
Front Wheel Speed Sensor Bolt
7 N. m (62 In. Lbs.)
-
2
Rear Wheel Speed Sensor Bolt
10 N. m (7 Ft. Lbs.)
-
Courtesy of CHRYSLER GROUP, LLC
