Torque Specifications - Emissions Control

Courtesy of CHRYSLER GROUP, LLC

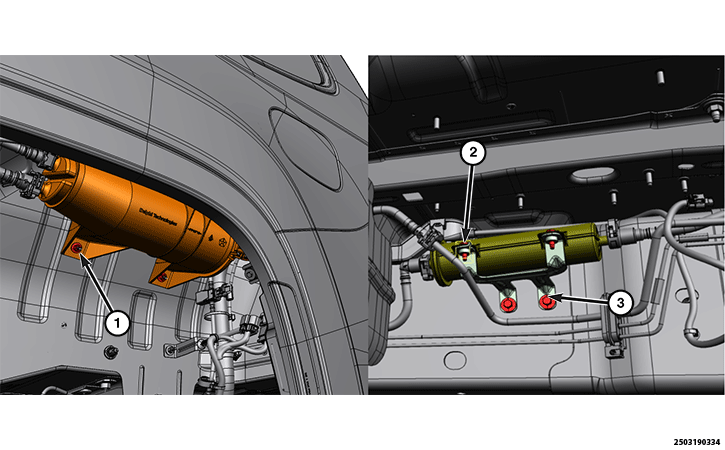

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Vapor Canister to Body Nuts	9 N.m (80 In. Lbs.)	-
2	Expansion Chamber to Bracket Bolts	6 N.m (53 In. Lbs.)	-
3	Expansion Chamber to Frame Bolts	8 N.m (71 In. Lbs.)	-
