Muffler Heat Shield: Notes

REMOVAL

1. Remove the muffler. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION .
2. Remove the muffler heat shield.

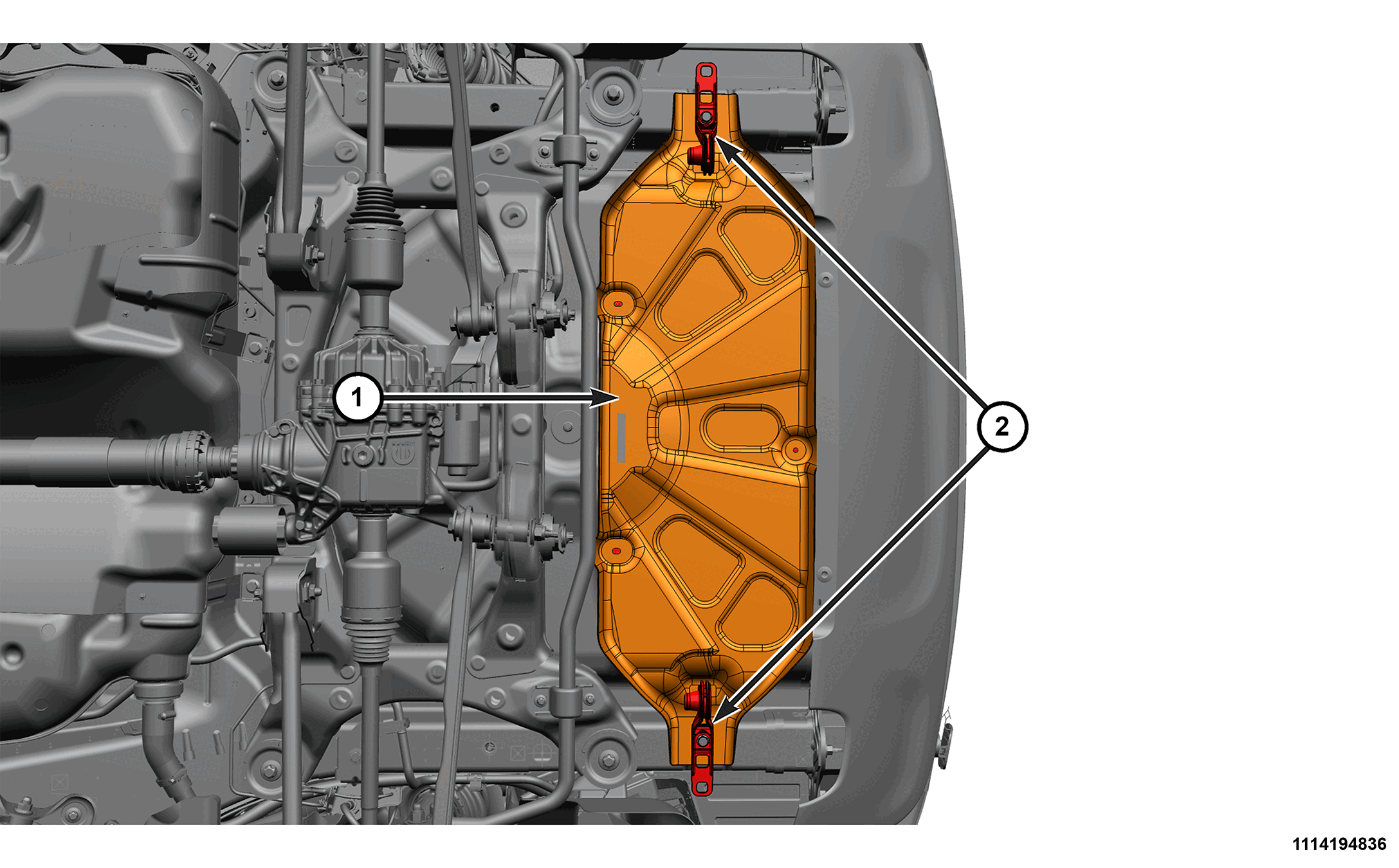

   Courtesy of CHRYSLER GROUP, LLC

   1 - Muffler Heat Shield

   2 - Exhaust Isolator Hangers

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.

During installation, torque the fasteners to the specifications in the torque table(s) below.

TORQUE SPECIFICATIONS
