Torque Specifications - Transmission Mount
 Courtesy of CHRYSLER GROUP, LLC
|

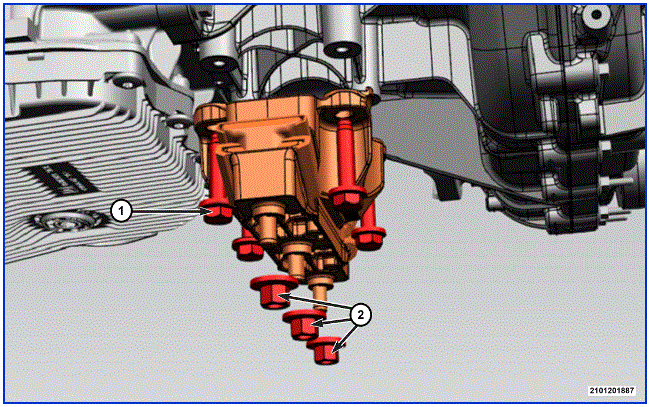

TORQUE SPECIFICATIONS - TRANSMISSION MOUNT
| CALLOUT |
DESCRIPTION |
SPECIFICATION |
COMMENT |
| 1 |
Transmission Isolator to Transmission Bolts |
63 N.m (46 Ft. Lbs.) |
- |
| 2 |
Transmission Isolator to Crossmember Nuts |
63 N.m (46 Ft. Lbs.) |
- |
