Trailer Tow Module - Two Row Seating

REMOVAL

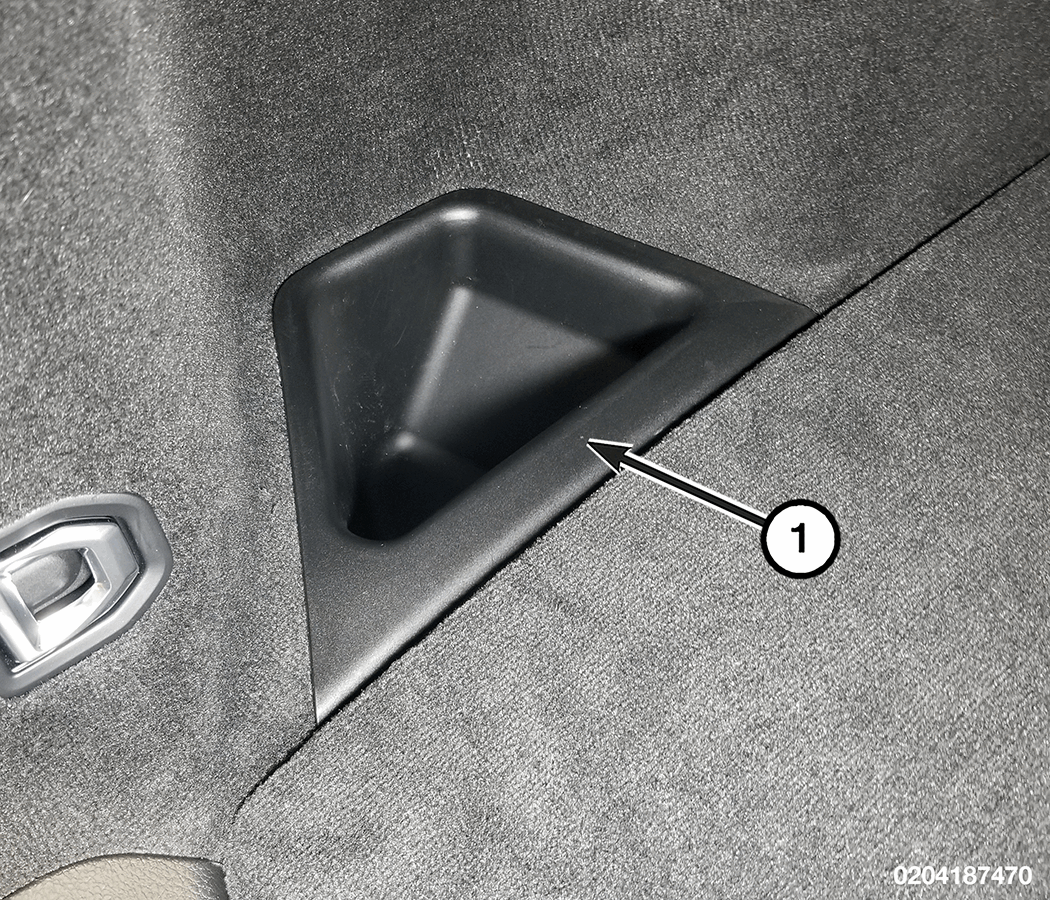

1. Pull out the storage bin.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Storage Bin

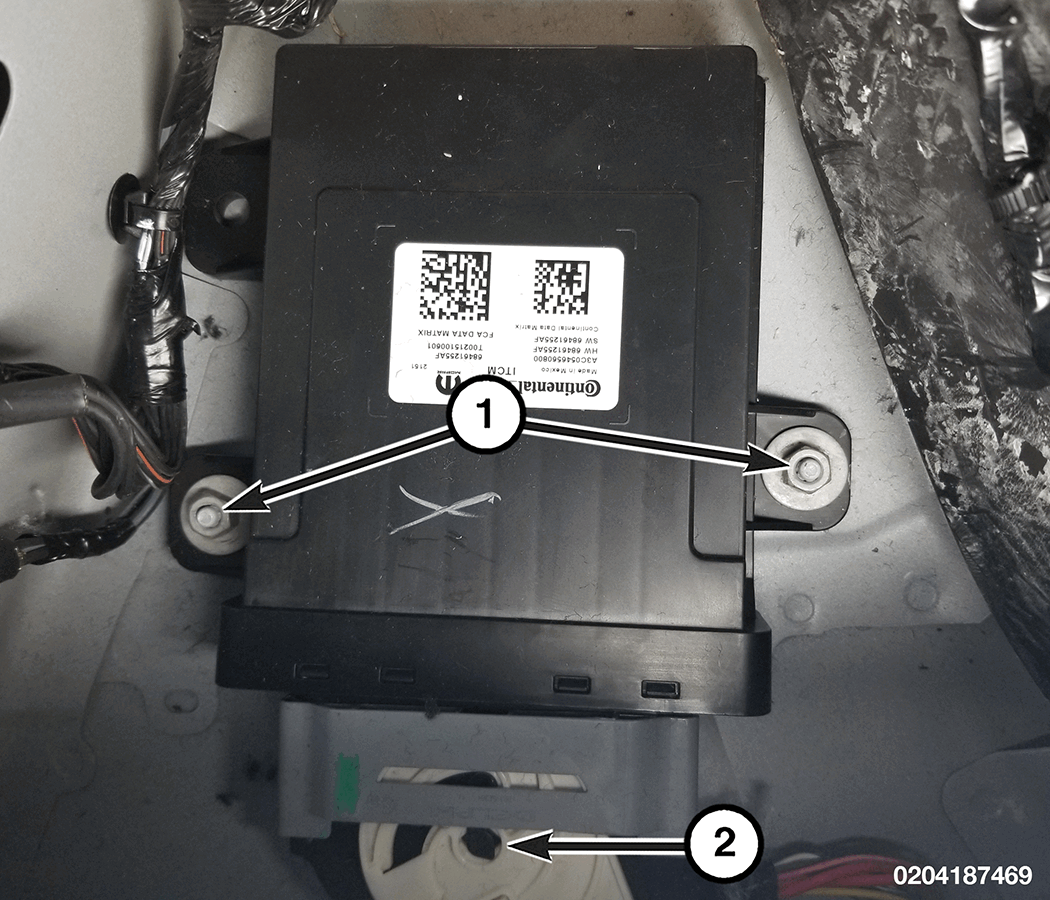

2. Disconnect the Trailer Tow Module (TTM) wire harness connector.

   Courtesy of CHRYSLER GROUP, LLC

   1 - TTM Nuts

   2 - TTM

3. Remove the TTM nuts and remove the TTM.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
