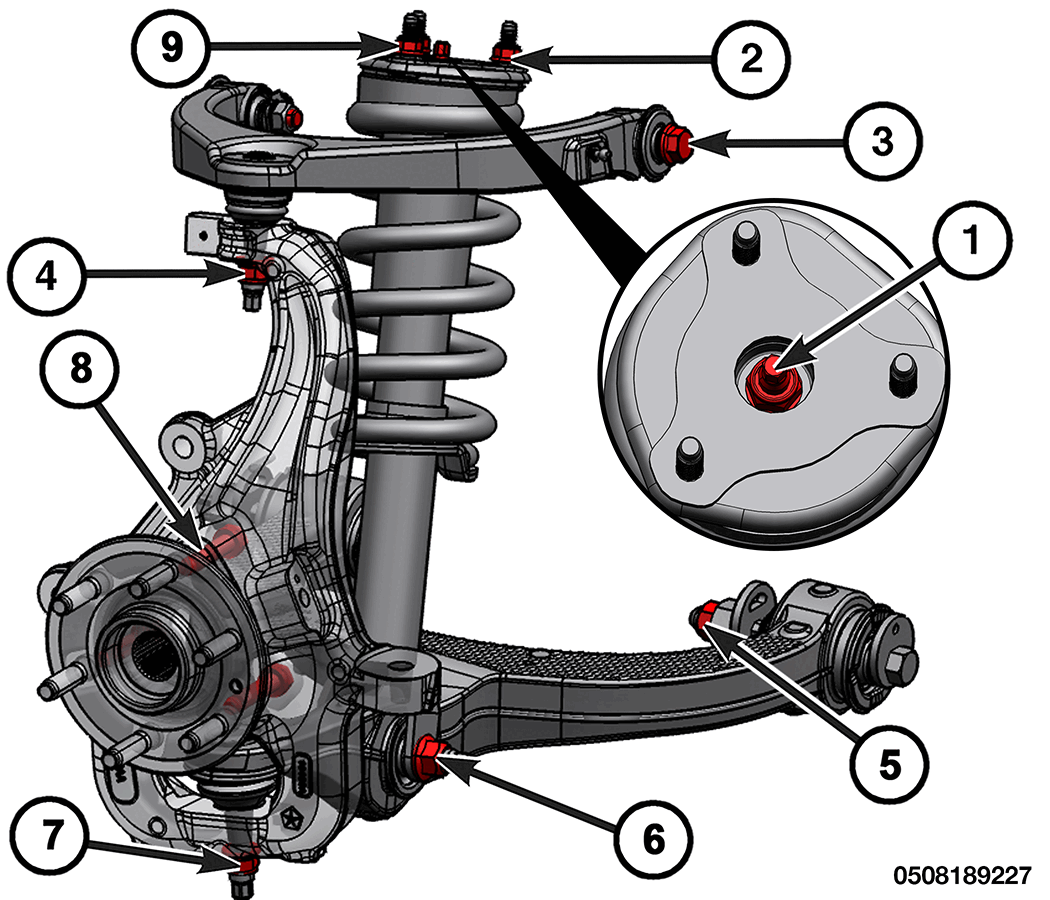

| 1 |
Strut Rod Nut |
35 N. m (26 Ft. Lbs.) |
- |
| 2 |
Shock Absorber Upper Nut |
70 N. m (52 Ft. Lbs.) |
- |
| 3 |
Upper Control Arm Bolt |
174 N. m (128 Ft. Lbs.) |
Fastener must be torqued with the vehicle at normal ride height. |
| 4 |
Upper Ball Joint Nut |
35 + 180° N. m (26 + 180° Ft. Lbs.) |
Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 5 |
Lower Control Arm Nuts |
100 + 145° N. m (74 + 145° Ft. Lbs.) |
Fastener must be torqued with the vehicle at normal ride height. |
| 6 |
Shock Absorber Lower Nut |
165 N. m (122 Ft. Lbs.) |
Fastener must be torqued with the vehicle at normal ride height. |
| 7 |
Lower Ball Joint Nut |
51 + 195° N. m (38 + 195° Ft. Lbs.) |
Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 8 |
Hub and Bearing Bolts |
50 + 165° N. m (37 + 165° Ft. Lbs.) |
- |
| 9 |
Ground Strap Nut |
63 N. m (46 Ft. Lbs.) |
- |
| Not Shown |
Halfshaft Nut |
250 N. m (184 Ft. Lbs.) |
Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
