Stabilizer Bar Link: Notes

REMOVAL

NOTE:

The air suspension system can be disabled and enabled by using the Display Screen Module (DSM) in the vehicle under Tire Jack Mode, which is the preferred method. If the disable level control routine in the scan tool is used, it will only disable the level control (automatic and manual) for that ignition cycle. The air suspension system can also be enabled by driving the vehicle above 19 km/h (12 mph). The air suspension should be disabled prior to lifting the vehicle or performing any work.

If equipped with air suspension, disable the air suspension system. Refer to DISABLING AND ENABLING AIR SUSPENSION .
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

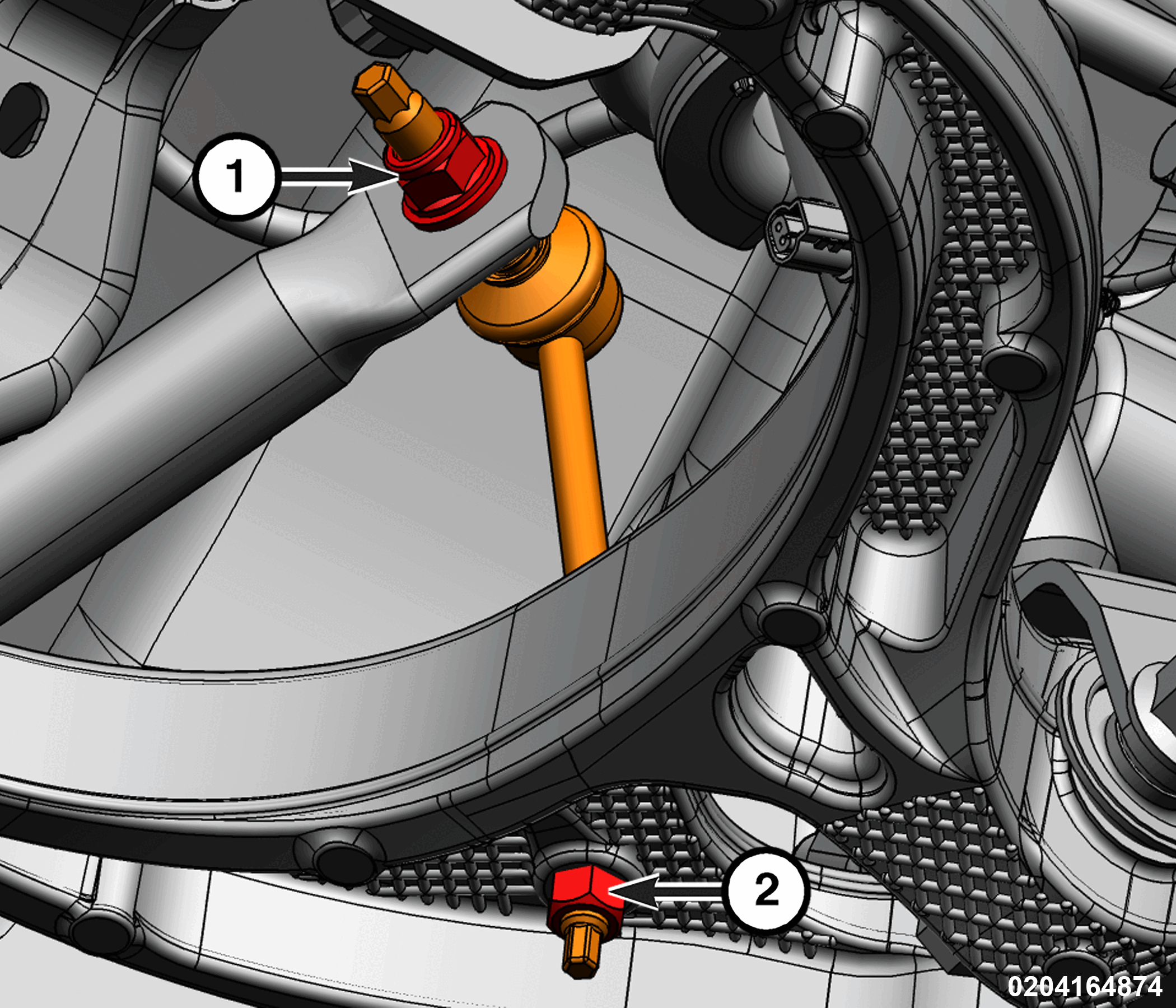

Courtesy of CHRYSLER GROUP, LLC

1 - Stabilizer Bar Link Upper Nut

2 - Stabilizer Bar Link Lower Nut
Remove the stabilizer bar link lower nut.
Remove the stabilizer bar link upper nut.
Remove the stabilizer bar link.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
