Torque Specifications - EGR System
TORQUE SPECIFICATIONS - EGR SYSTEM

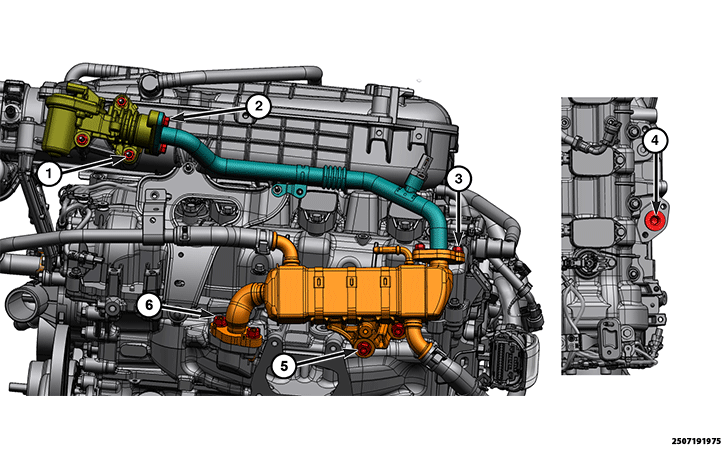

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | EGR Valve Nuts | 10 N. m (7 Ft. Lbs.) | - |
| 2 | EGR Tube to EGR Valve | 10 N. m (7 Ft. Lbs.) | - |
| 3 | EGR Tube to EGR Cooler | 10 N. m (7 Ft. Lbs.) | - |
| 4 | EGR Blocker Plug to Cylinder Head | 50 N. m (37 Ft. Lbs.) | - |
| 5 | EGR Cooler to Cylinder Head Mounting | 23 N. m (17 Ft. Lbs.) | - |
| 6 | EGR Cooler to Cylinder Head | 10 N. m (7 Ft. Lbs.) | - |
