Instrument Panel PDC: Notes

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to 2.0L, 12 VOLT BATTERY DISCONNECT or 3.6L, BATTERY DISCONNECT AND CONNECT .
2. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .
3. Remove the instrument panel PDC bracket to crossbrace bolts.

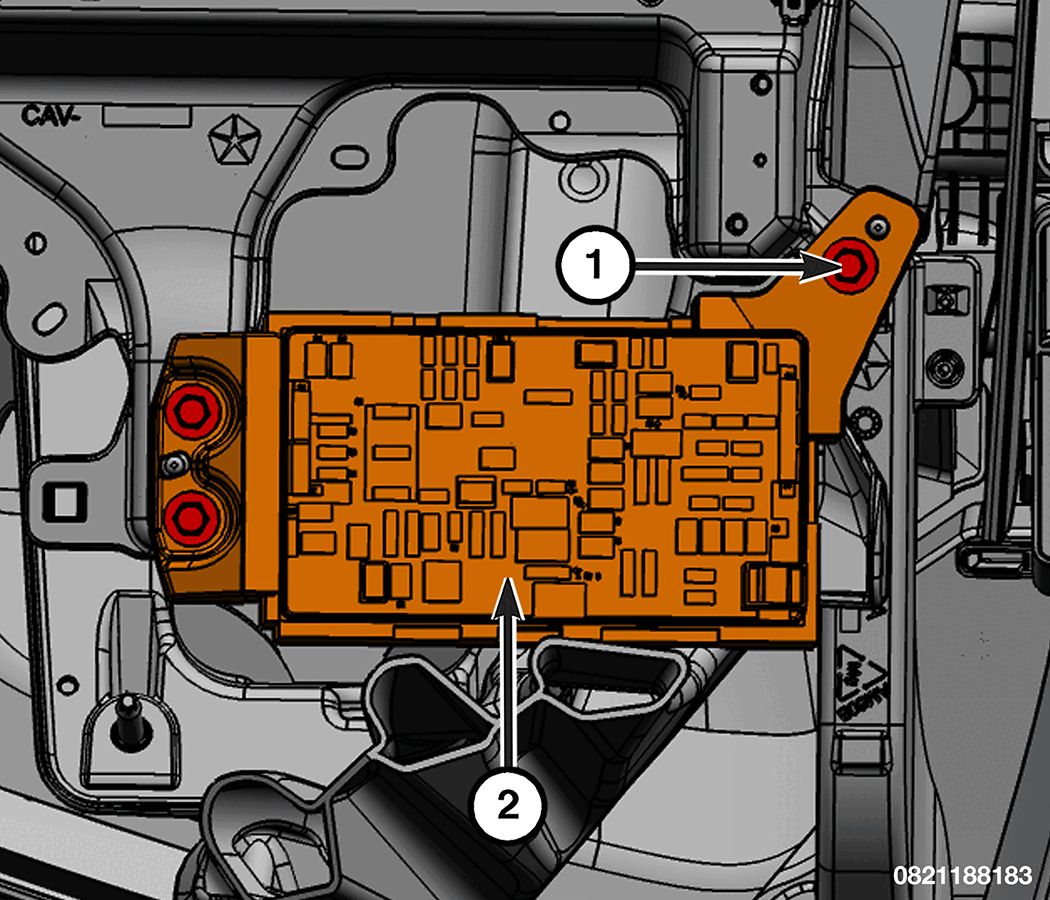

   Courtesy of CHRYSLER GROUP, LLC

   1 - Instrument Panel Power Distribution Center (PDC) Bracket to Crossbrace Bolts

   2 - Instrument Panel Power Distribution Center (PDC)

4. Release the wire harness retainer(s) and disconnect the wire harness connectors from the instrument panel PDC.
5. Remove the instrument panel PDC from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
