Base Stabilizer Bar: Notes

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the stiffening plate. Refer to PLATE, STIFFENING, REMOVAL AND INSTALLATION .
3. Remove the torque box crossmember. Refer to CROSSMEMBER, REMOVAL AND INSTALLATION .
4. Disconnect both stabilizer bar links from the stabilizer bar. Refer to LINK, STABILIZER BAR, REMOVAL AND INSTALLATION .
5. Remove the heat shield bolts and remove the heat shield.

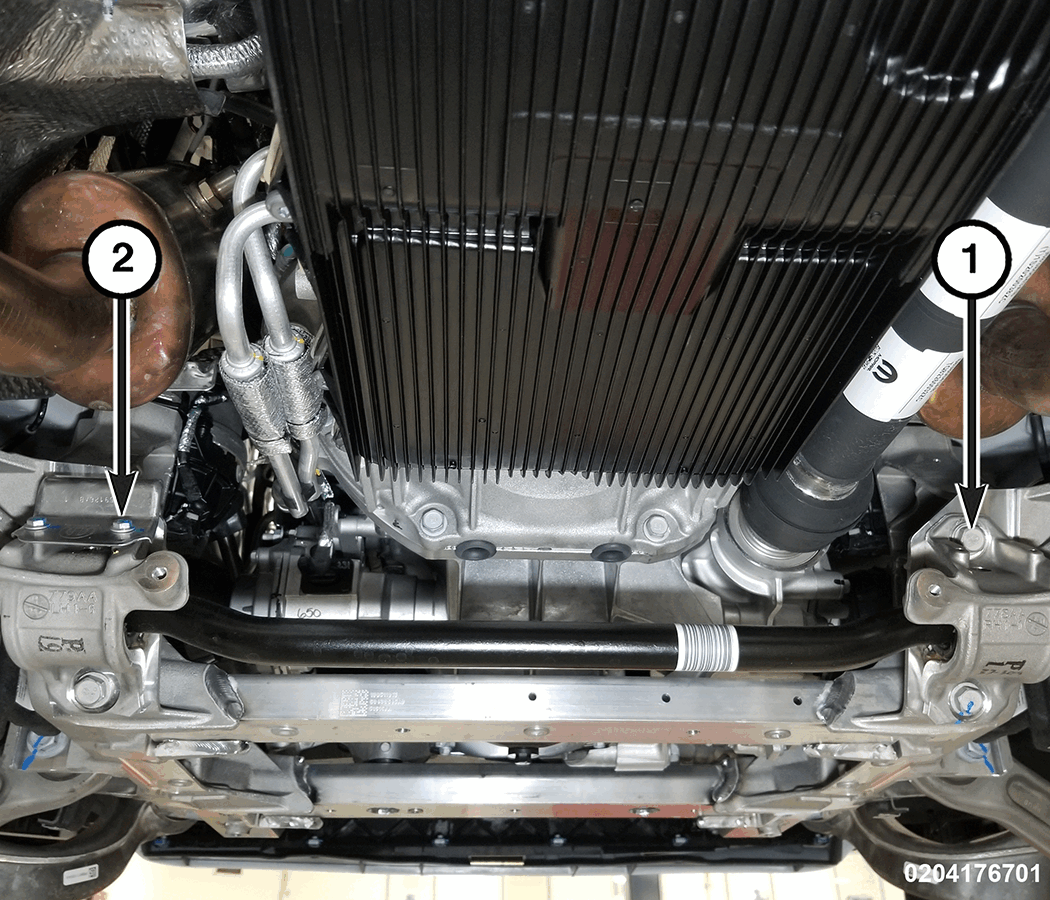

   Courtesy of CHRYSLER GROUP, LLC

   1 - Stabilizer Bar Bolts

   2 - Heat Shield Bolts

6. Remove the stabilizer bar bolts from both sides.
7. Remove the stabilizer bar, brackets, and bushings as an assembly.
8. Remove the stabilizer bar brackets from the bushings.
9. Remove the stabilizer bar bushings from the stabilizer bar.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
