System Inspection

Purge system operation takes place when vehicle is accelerating in gear (off idle), engine is at operating temperature and oxygen sensor is functioning normally. See Fig 1 .

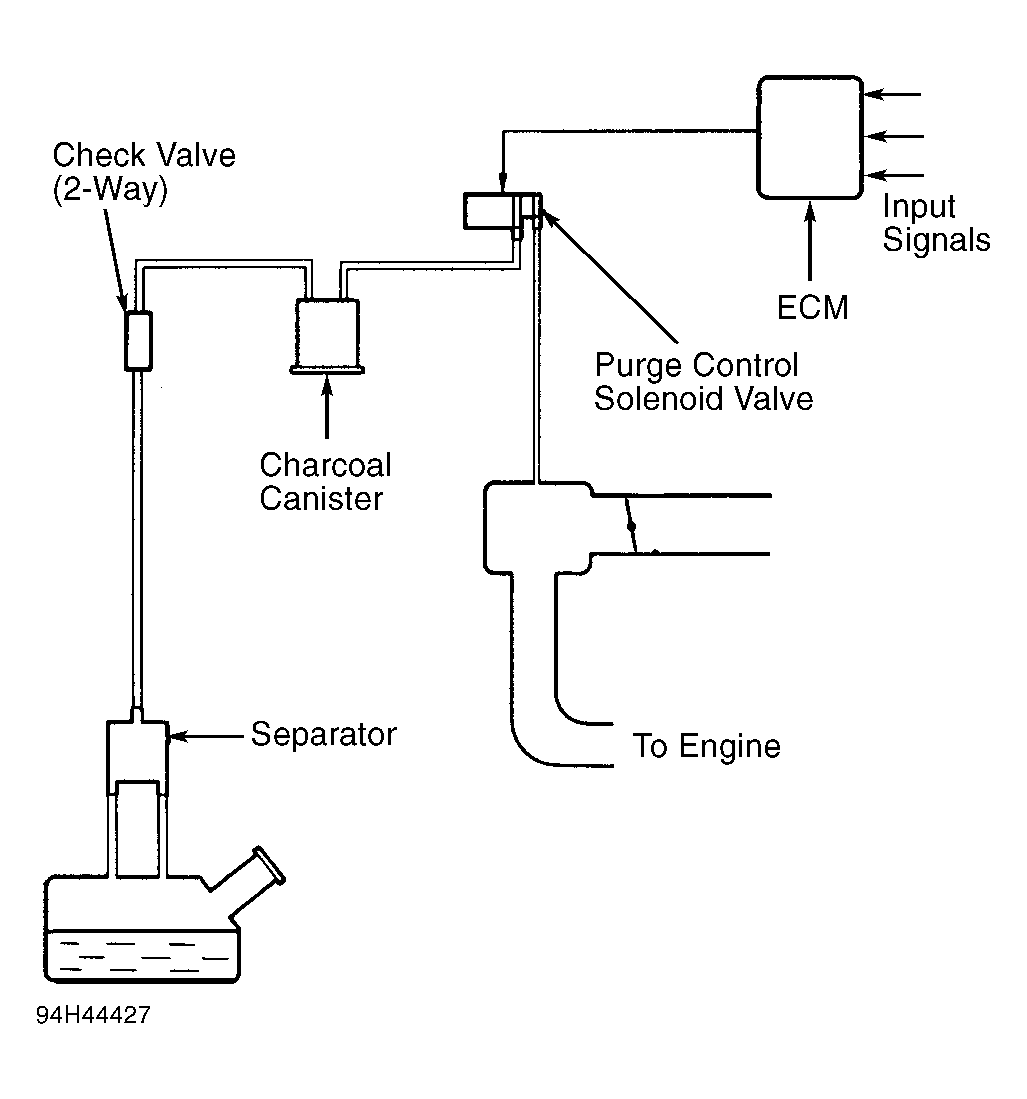

Fig 1: Fuel Evaporation Control System Component ID

Courtesy of KIA MOTORS AMERICA, INC.
