Component Testing: Actuator

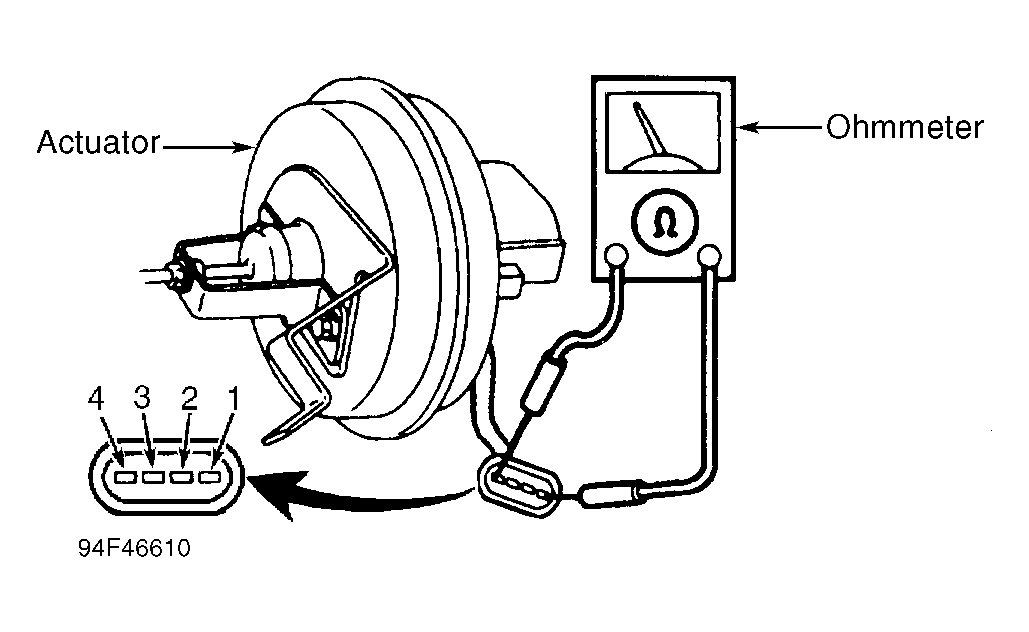

Using an ohmmeter, measure resistance between the specified terminals of the actuator connector. SeeFig 1 . Also, refer to the ACTUATOR RESISTANCE SPECIFICATIONS . If resistance is not as specified, replace actuator. If resistance is as specified, perform FUNCTION TEST.
