Passenger Compartment Fuse Box

NOTE: Passenger compartment fuse box is located on driver's side kick panel.

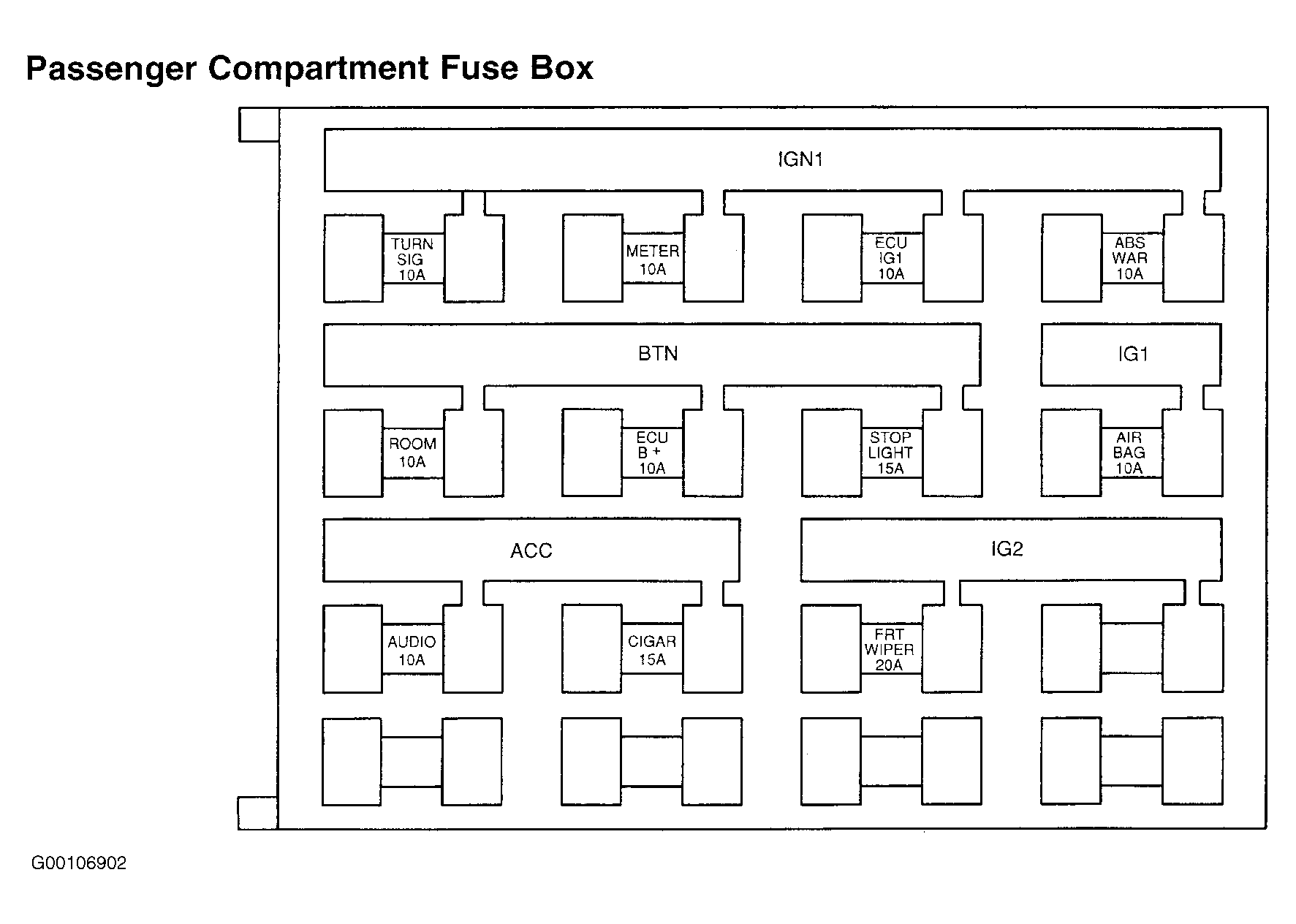

Fig 1: Identifying Passenger Compartment Fuse Box Components

Courtesy of KIA MOTORS AMERICA, INC.

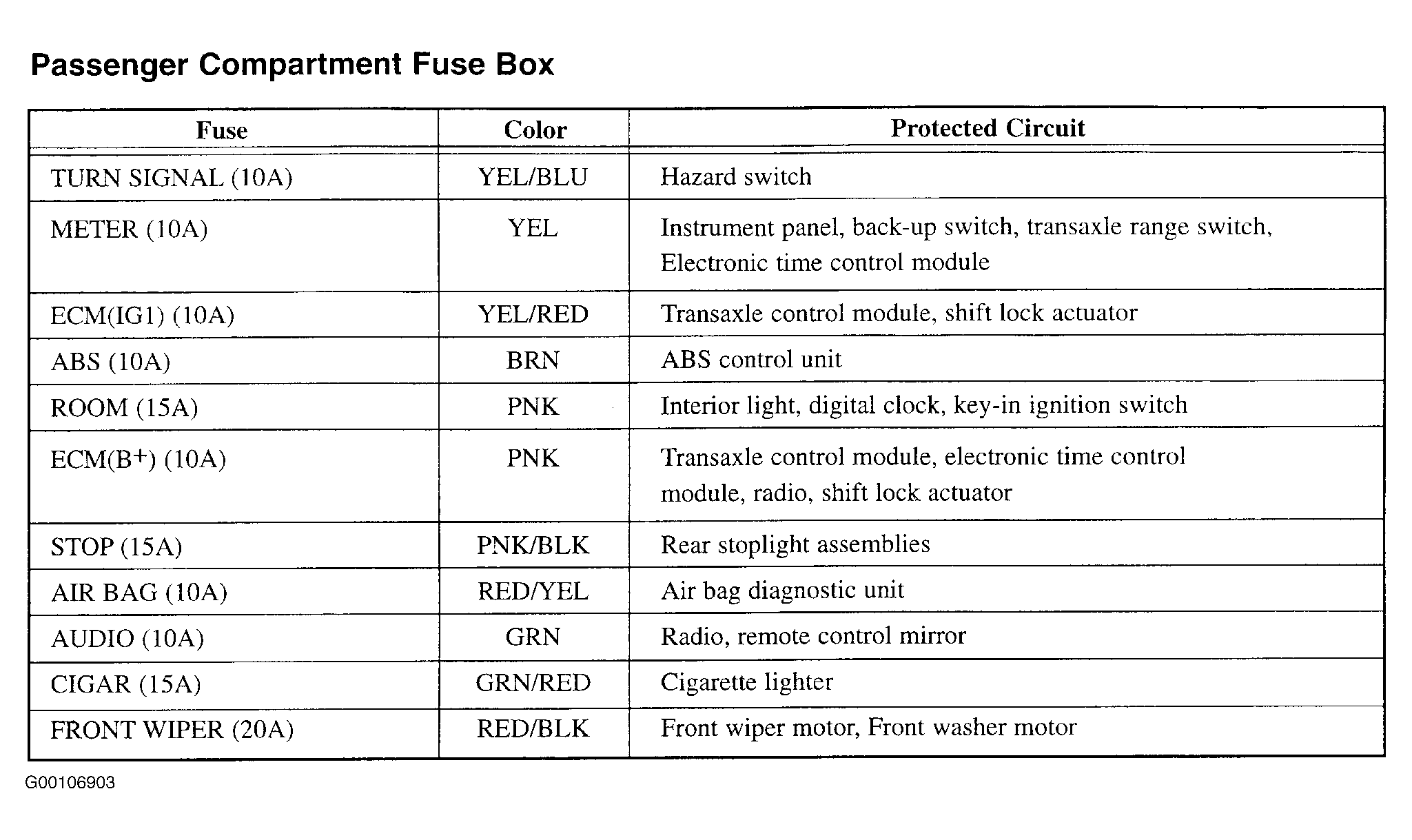

Fig 2: Passenger Compartment Fuse Box Legend

Courtesy of KIA MOTORS AMERICA, INC.
