Diagram Of Input/Output For HECU
Diagram Of Input/Output For HECU

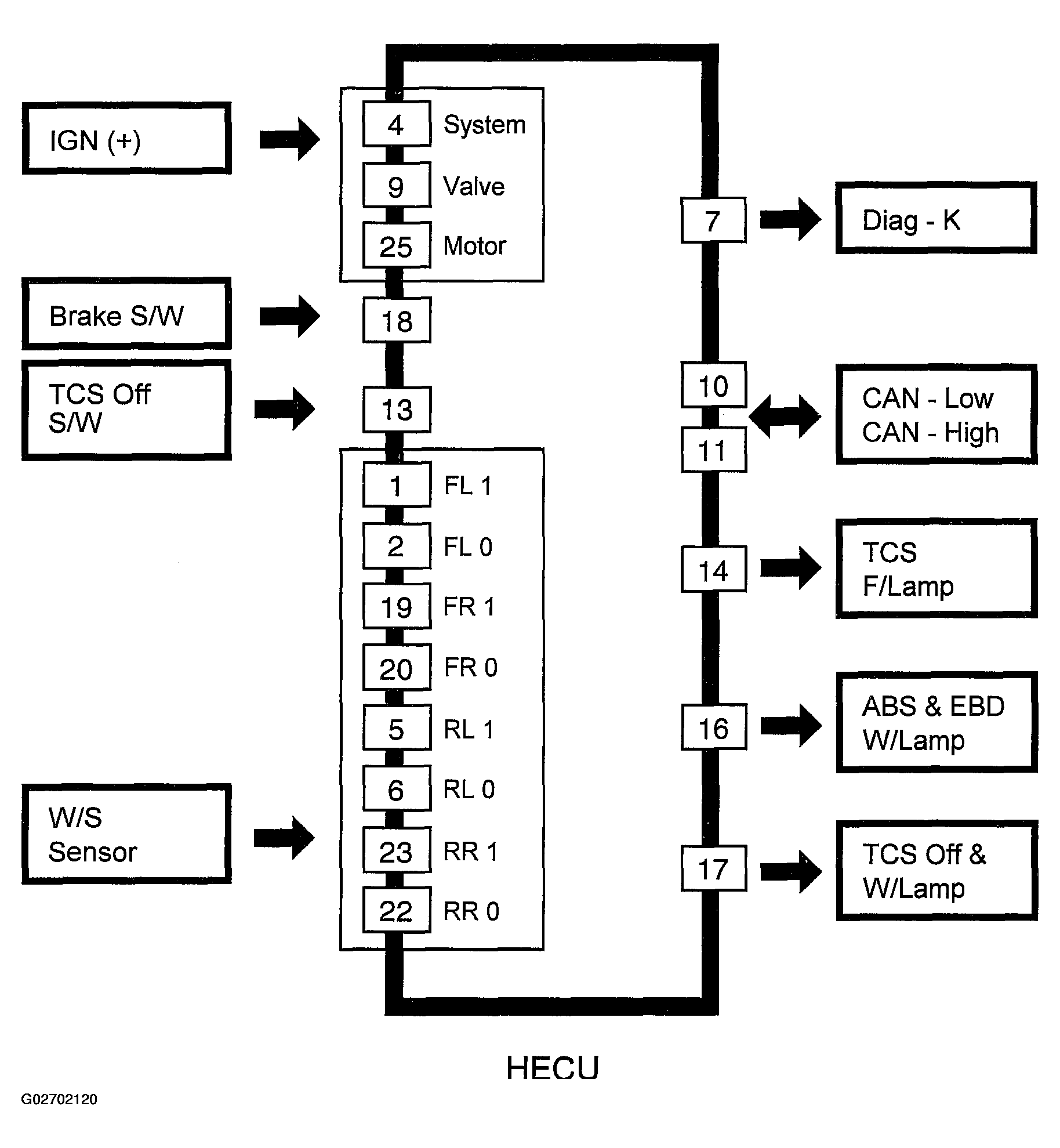

Fig 1: HECU Input/Output Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
