System Diagram: Notes

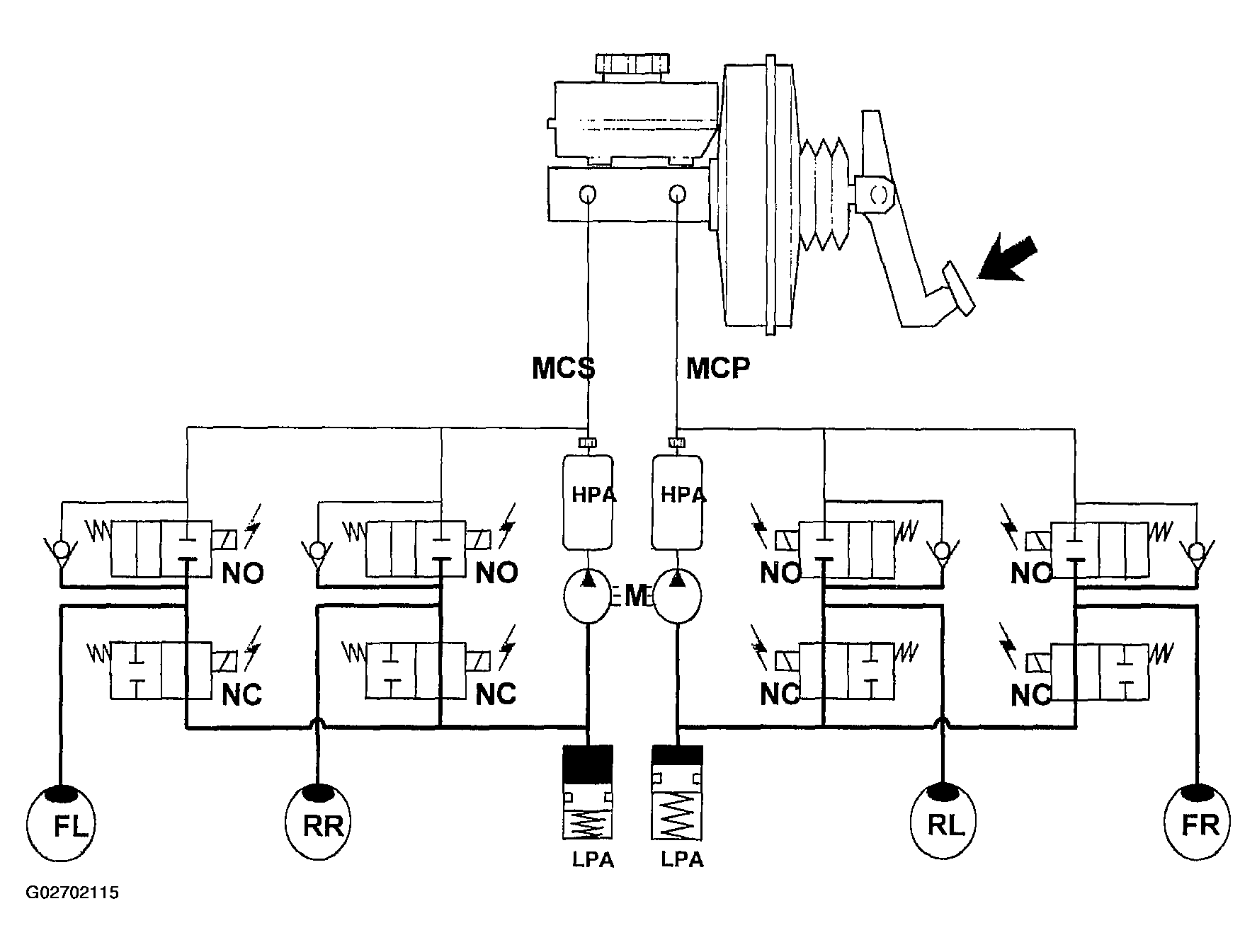

Fig 1: System Diagram
G02702115Courtesy of KIA MOTORS AMERICA, INC.

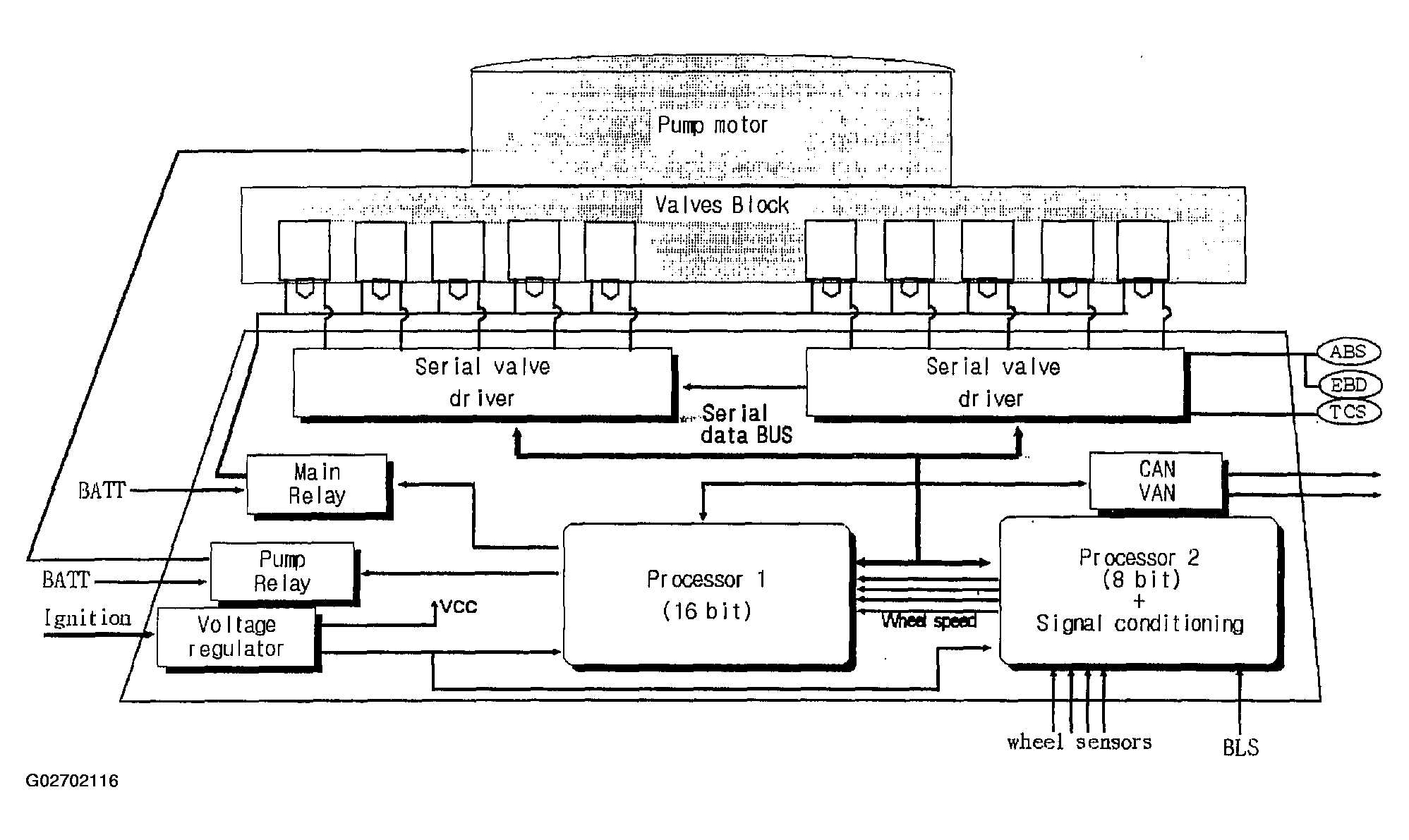

Fig 2: HECU Diagram
G02702116Courtesy of KIA MOTORS AMERICA, INC.
