Accumulator Spring Inspection

Measure spring free length.
If not within specification, replace spring.

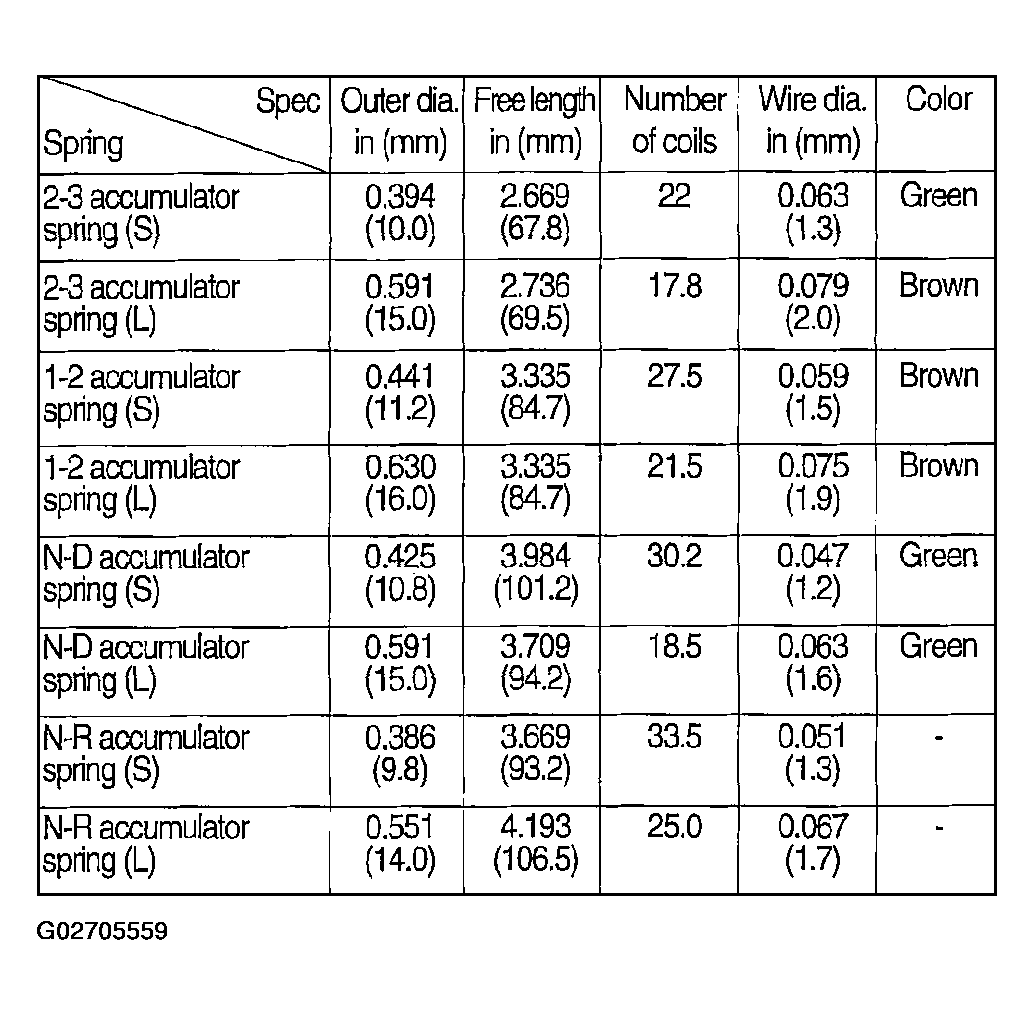

Fig 1: Identifying Accumulator Spring Specifications

Fig 2: Measuring Accumulator Spring Length & Diameter
