Home › Kia › 2001 › Rio Automatic › Repair and Diagnosis › Transmission › Automatic Trans › Overhaul › Main Control Valve Body › Inspection

Main Control Valve Body: Inspection

  1. Measure spring free lengths.
    Fig 1: Measuring Spring Length & Diameter
    G02705741
  2. If not within specification, replace spring(s).

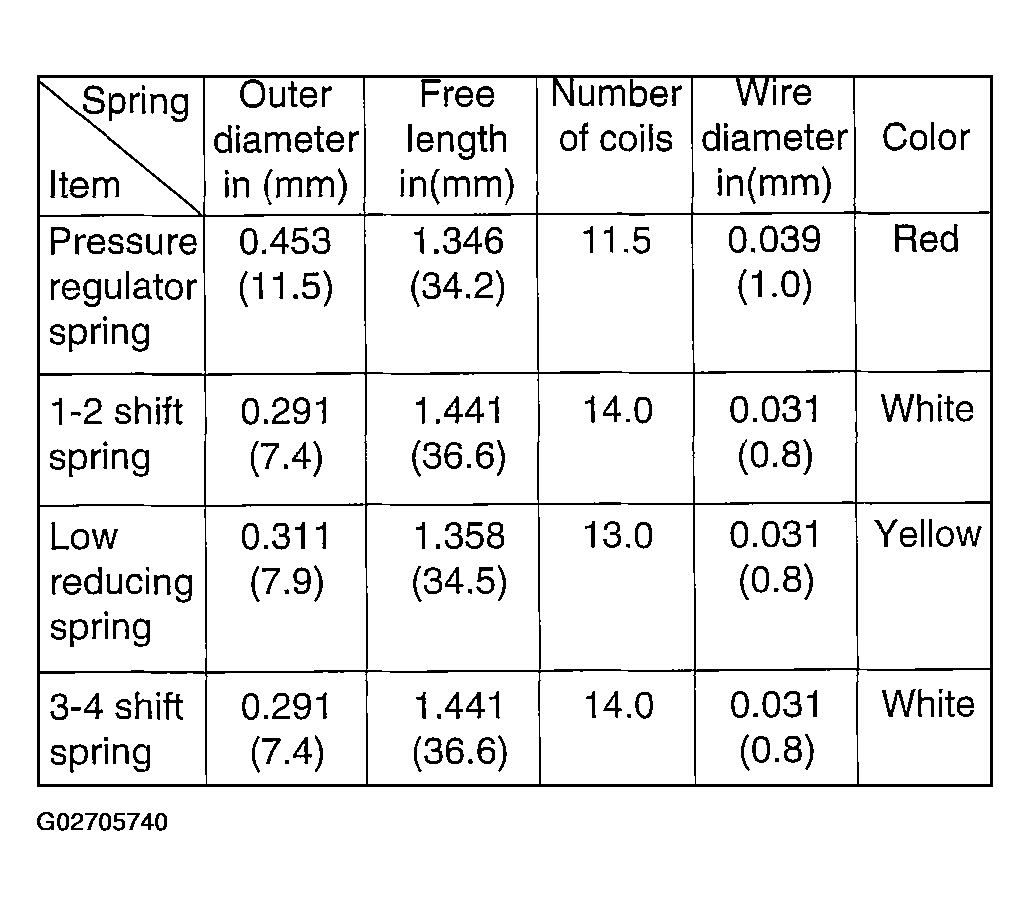

    Fig 2: Identifying Spring Specifications
    G02705740
