Clutch Operation

Set reverse/forward clutch assembly onto oil pump.
Check clutch operation by applying compressed air through fluid passages shown in Fig 1 .
Applied air pressure: 57 psi (392 kPa, 4.0 kg/cm ² ) maximum

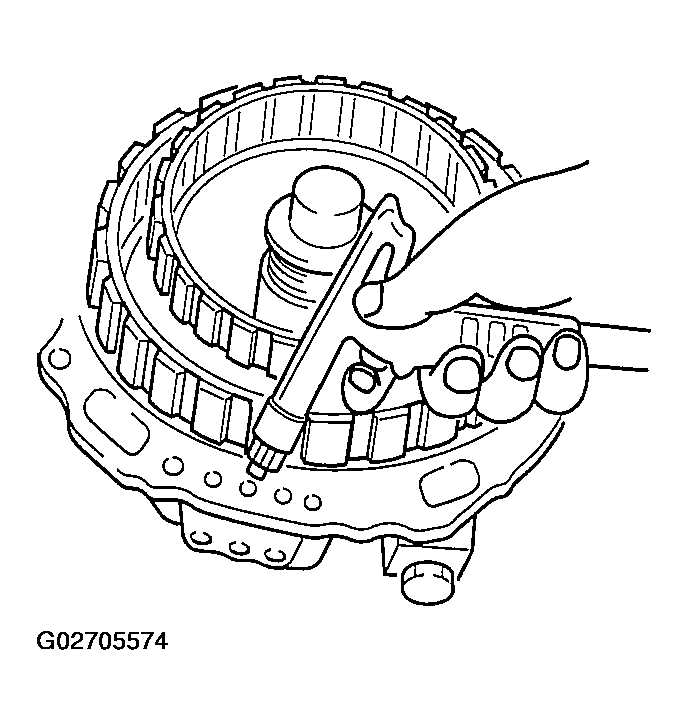

Fig 1: Checking Clutch Operation Using Compressed Air
