Upper Control Valve Body: Reassembly
Insert solenoid reducing valve and solenoid reducing spring then secure them with spring retainer.
Insert P.E accumulator valve and P.E accumulator spring then secure them with spring retainer.

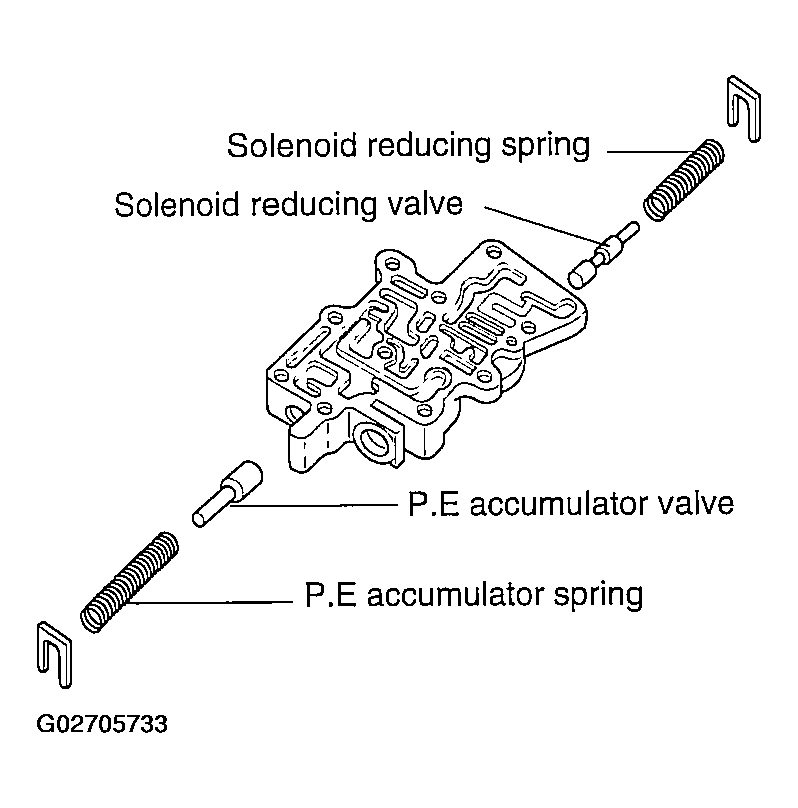

Fig 1: Reassembling Upper Control Valve Body Components
