Replacing Sensor Rotor

Remove the rear brake drum from the vehicle.
Remove the sensor rotor by using the SST (0K670 990 AA0) .

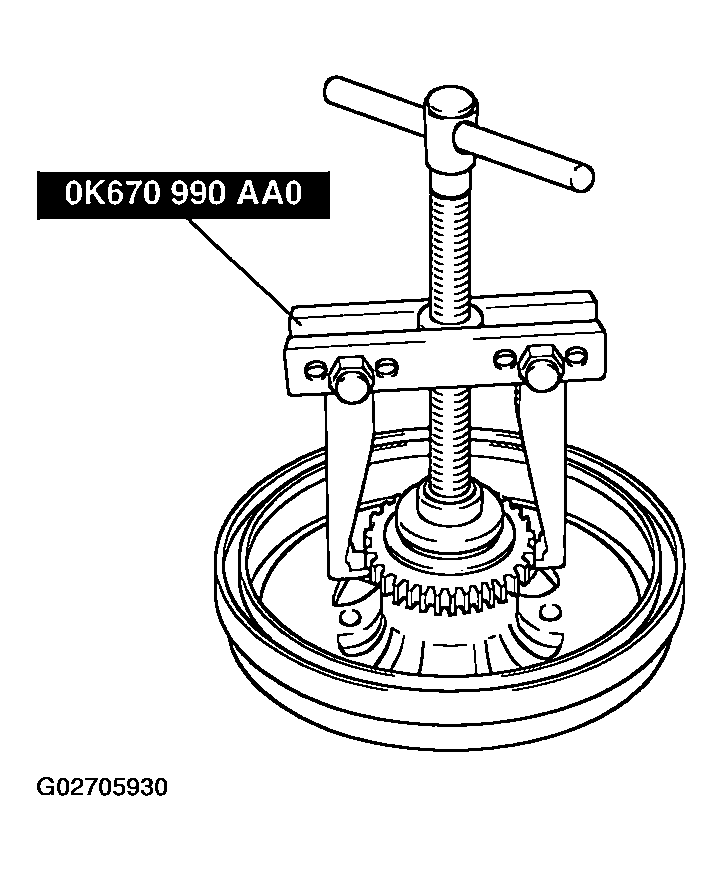

Fig 1: Removing Rear Sensor Rotor
Courtesy of KIA MOTORS AMERICA, INC.
Install the sensor rotor by using suitable tool.

Fig 2: Installing Rear Sensor Rotor
Courtesy of KIA MOTORS AMERICA, INC.
