Passenger Compartment Fuse Box

NOTE: Passenger compartment fuse box is located on driver's side dash panel, below steering wheel.

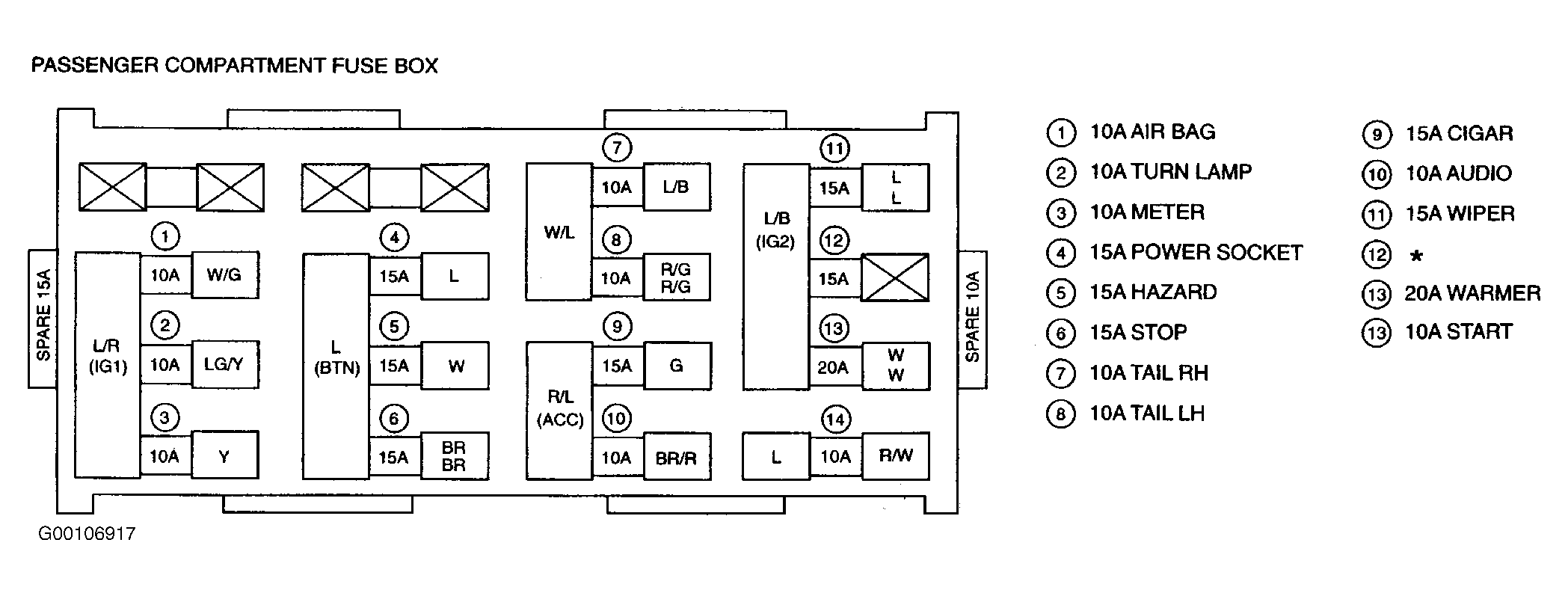

Fig 1: Identifying Passenger Compartment Fuse Box Components

Courtesy of KIA MOTORS AMERICA, INC.
