Disassembly Note: Locknut

  1. Mount transaxle on SST(OK130 990 007)  .

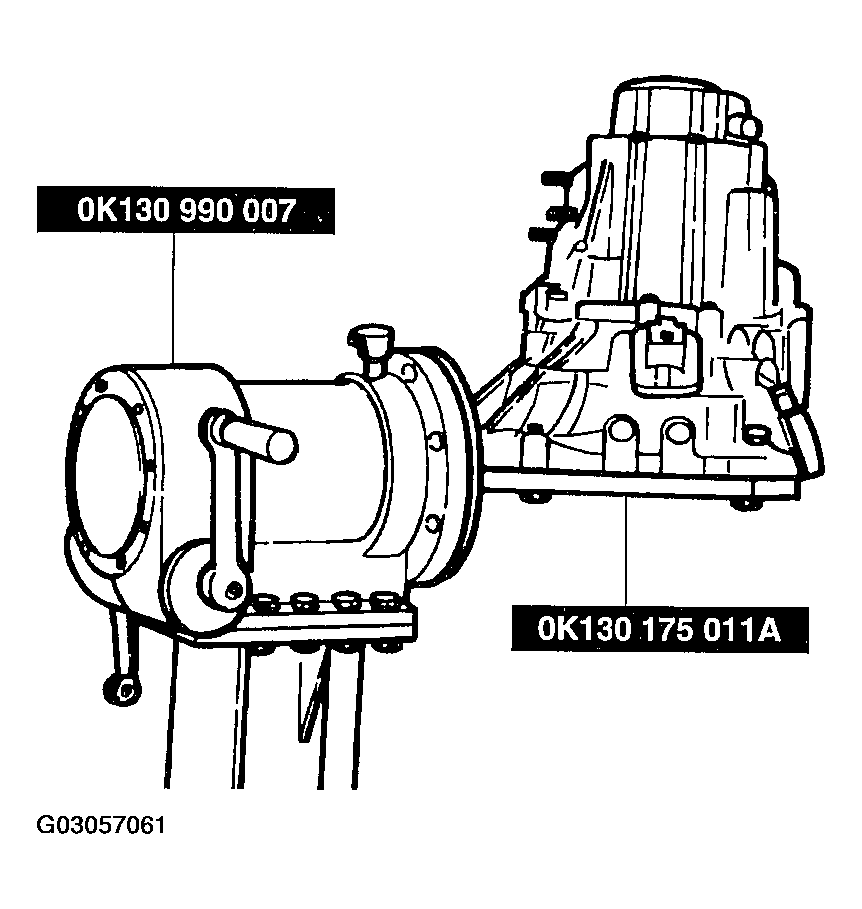

    Fig 1: Mounting Transaxle On Stand
    G03057061
  2. Lock primary shaft using SST(0K201 323 021 / K94A-4205-MT)  .

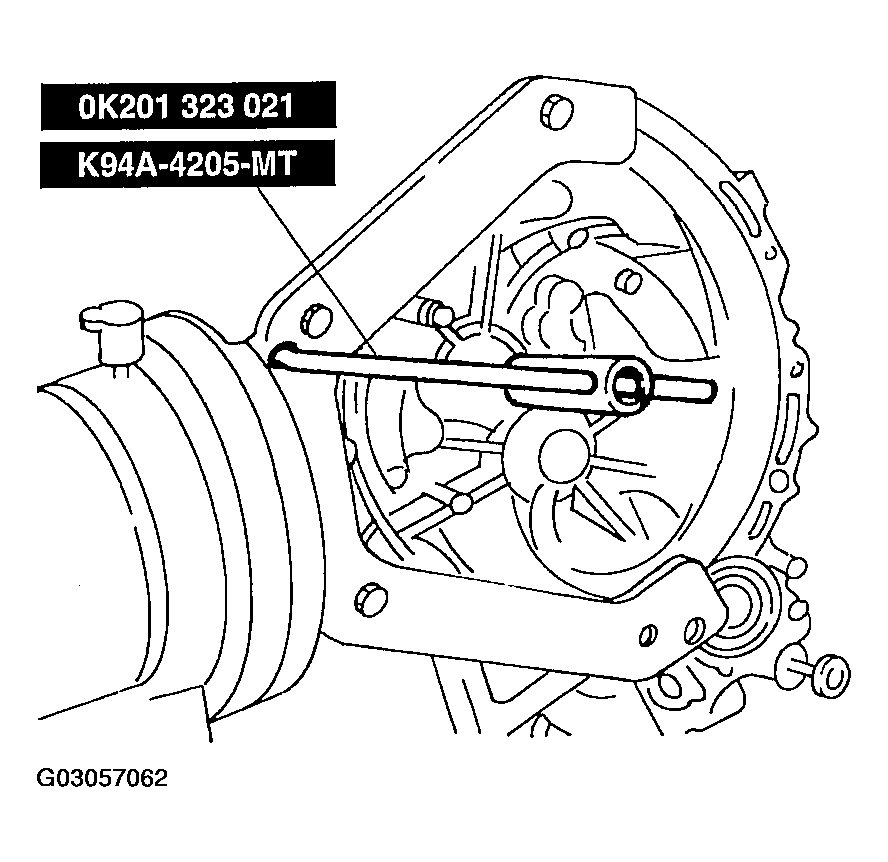

    Fig 2: Locking Primary Shaft
    G03057062
  3. Shift to 1st gear to lock rotation of secondary shaft.
  4. Unfold tabs of locknuts.
  5. Remove locknuts from primary and secondary shafts.
