Abs Cu Inspection

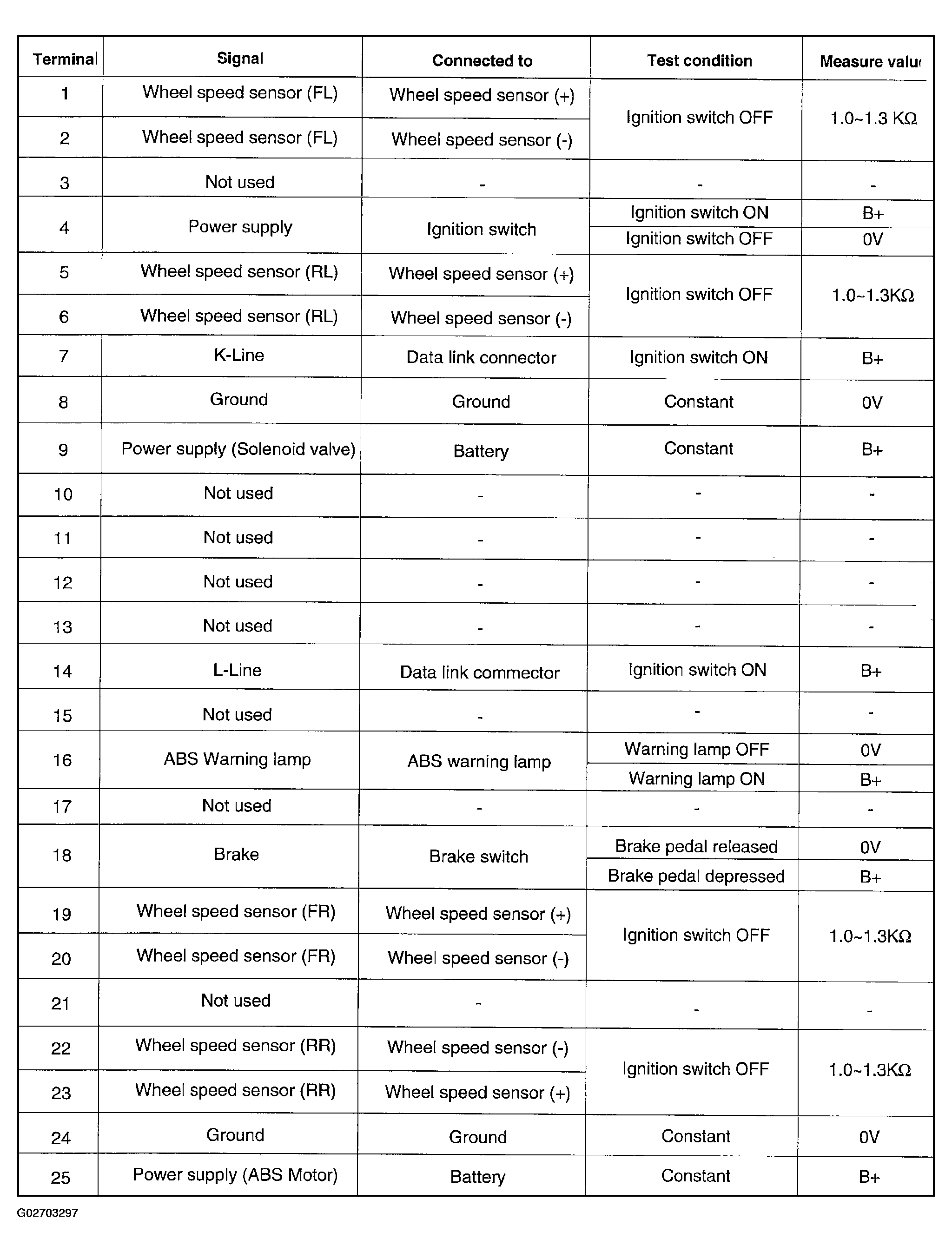

Terminal voltage table (B+: Battery voltage)

Fig 1: Identifying ABS CU Terminal Voltage Specifications
G02703297
