Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Unit | At left rear of engine compartment. |

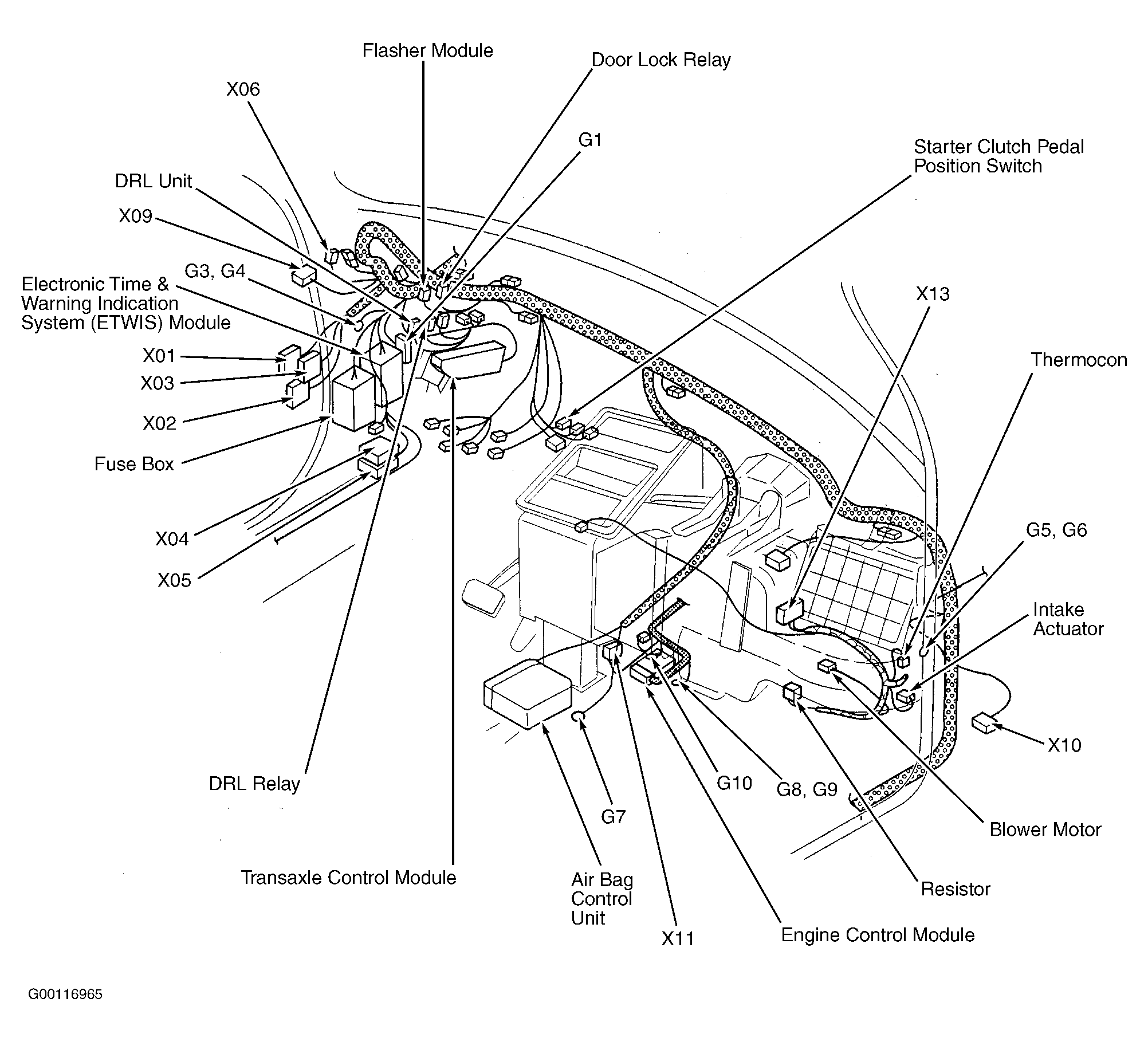

| Air Bag Control Unit | Under front of center floor console. See Figure . |
| A/T Shift Interlock Control Unit | In floor console. |
| Cruise Control Module | At right rear of engine compartment. |
| DRL Unit | Behind left side of dash. See Figure . |
| Electronic Time & Warning Indication System (ETWIS) Module | Behind left kick panel. See Figure . |
| Engine Control Module | Behind lower center of dash, mounted to floor. See Figure . |
| Flasher Module | Behind left side of dash. See Figure . |
| Sun Roof Unit | At front center of roof. |
| Transaxle Control Module | Behind left side of dash. See Figure . |
