Transaxle Case

Transaxle case and torque converter case oil passages may be checked for porosity or restrictions, by applying compressed air to appropriate ports. See Fig 1 and Fig 2 .

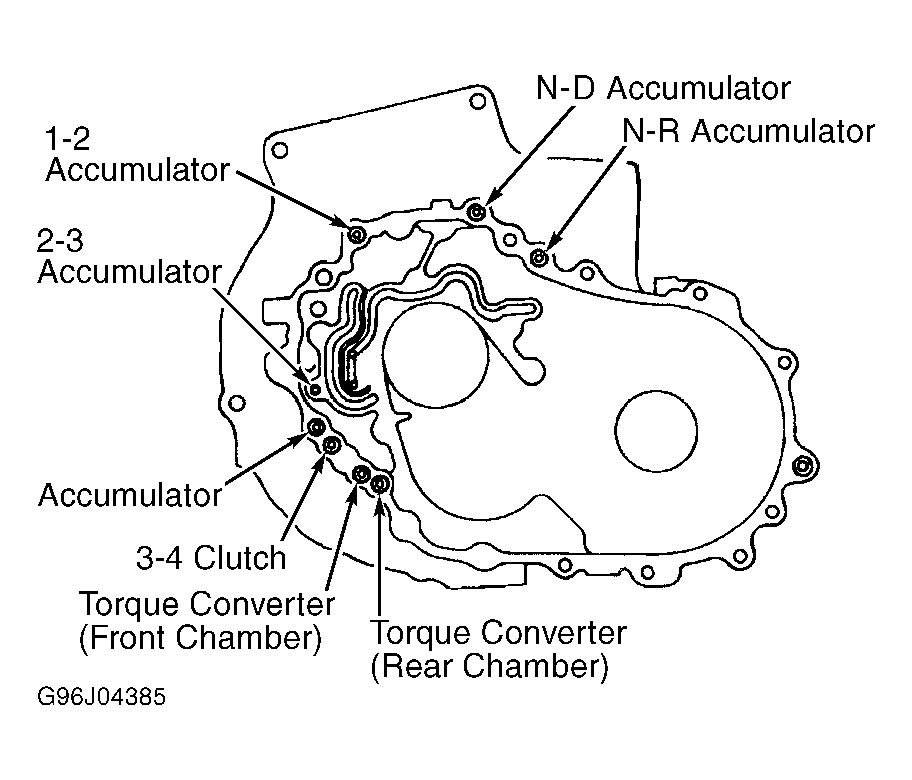

Fig 1: Identifying Converter Housing-To-Transaxle Case Oil Passages

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Transaxle Case-To-Converter Housing Oil Passages

Courtesy of FORD MOTOR CO.
