Valve Body: Reassembly

NOTE: Match bolt head letter with corresponding letter on valve body. DO NOT mix gaskets during assembly.

Install all valve trains into respective bores using illustrations as assembly guides. See Fig 1 -Fig 3 . Assemble all valve body components in reverse order of disassembly. Coat "O" rings with ATF. Tighten bolts to specifications. See TORQUE SPECIFICATIONS .

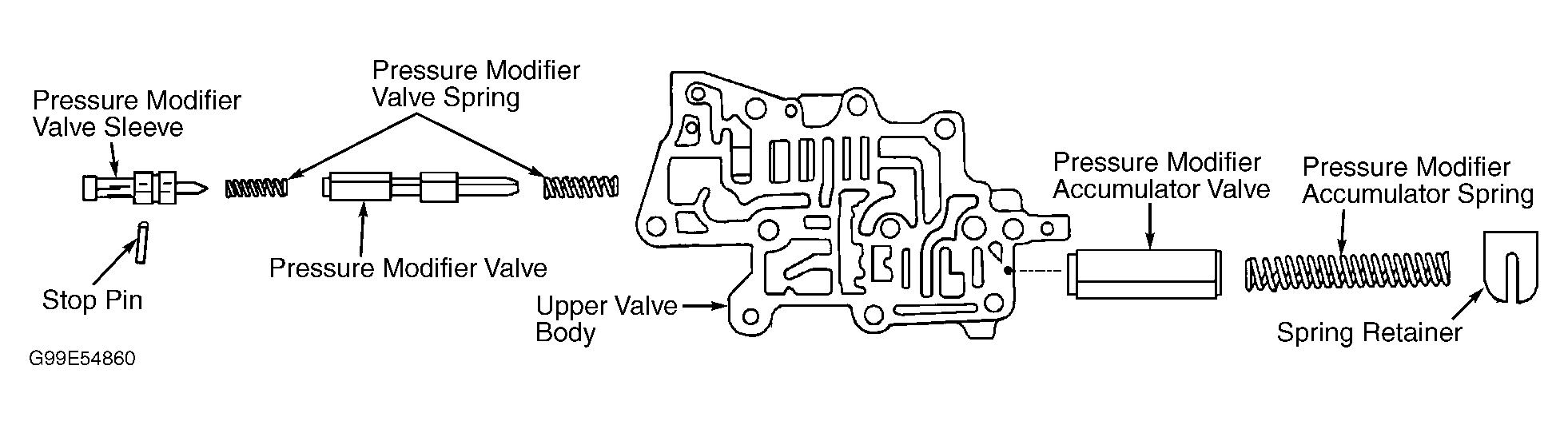

Fig 1: Exploded View Of Upper Valve Body

Courtesy of FORD MOTOR CO.

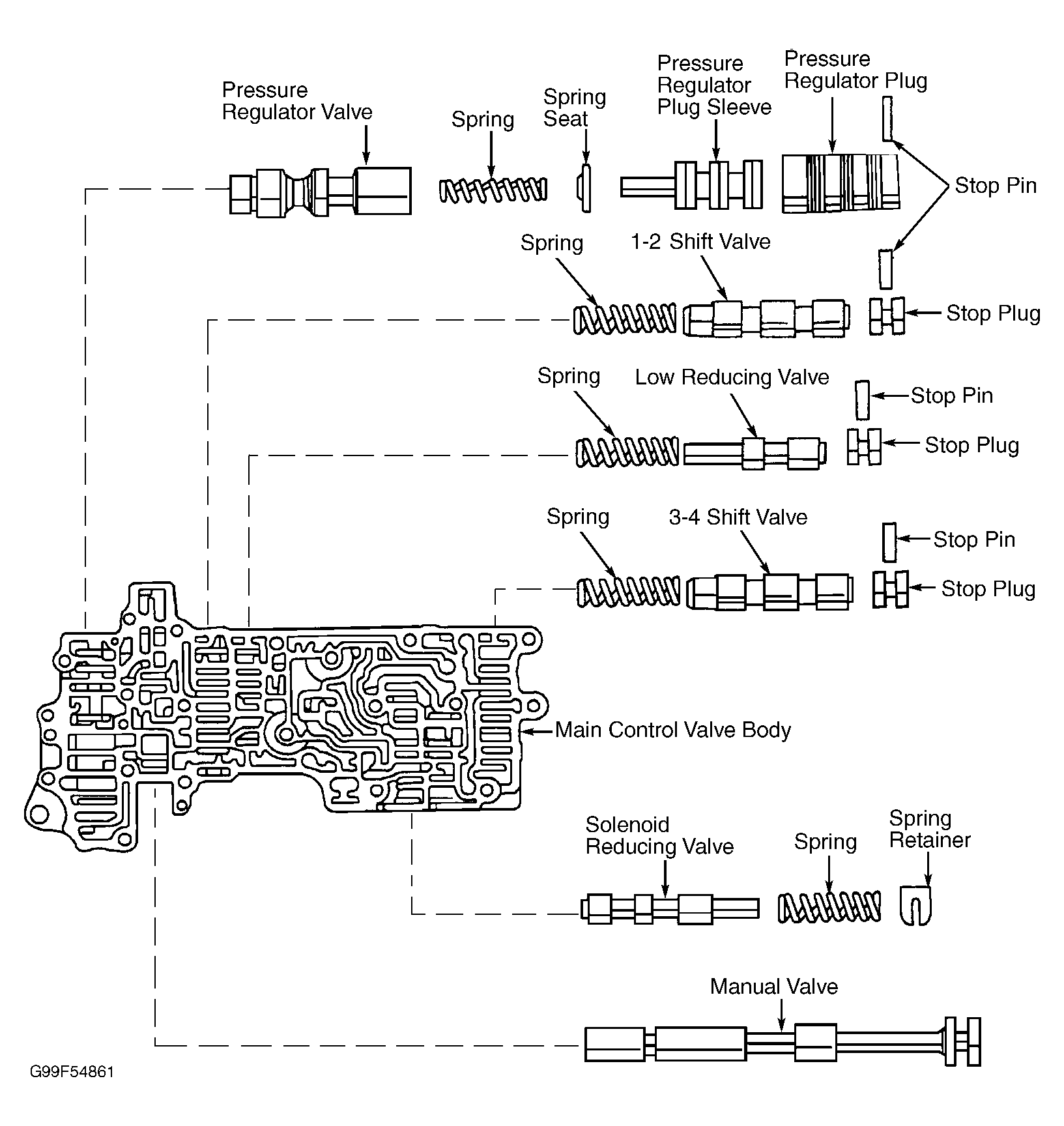

Fig 2: Exploded View Of Main Control Valve Body

Courtesy of FORD MOTOR CO.

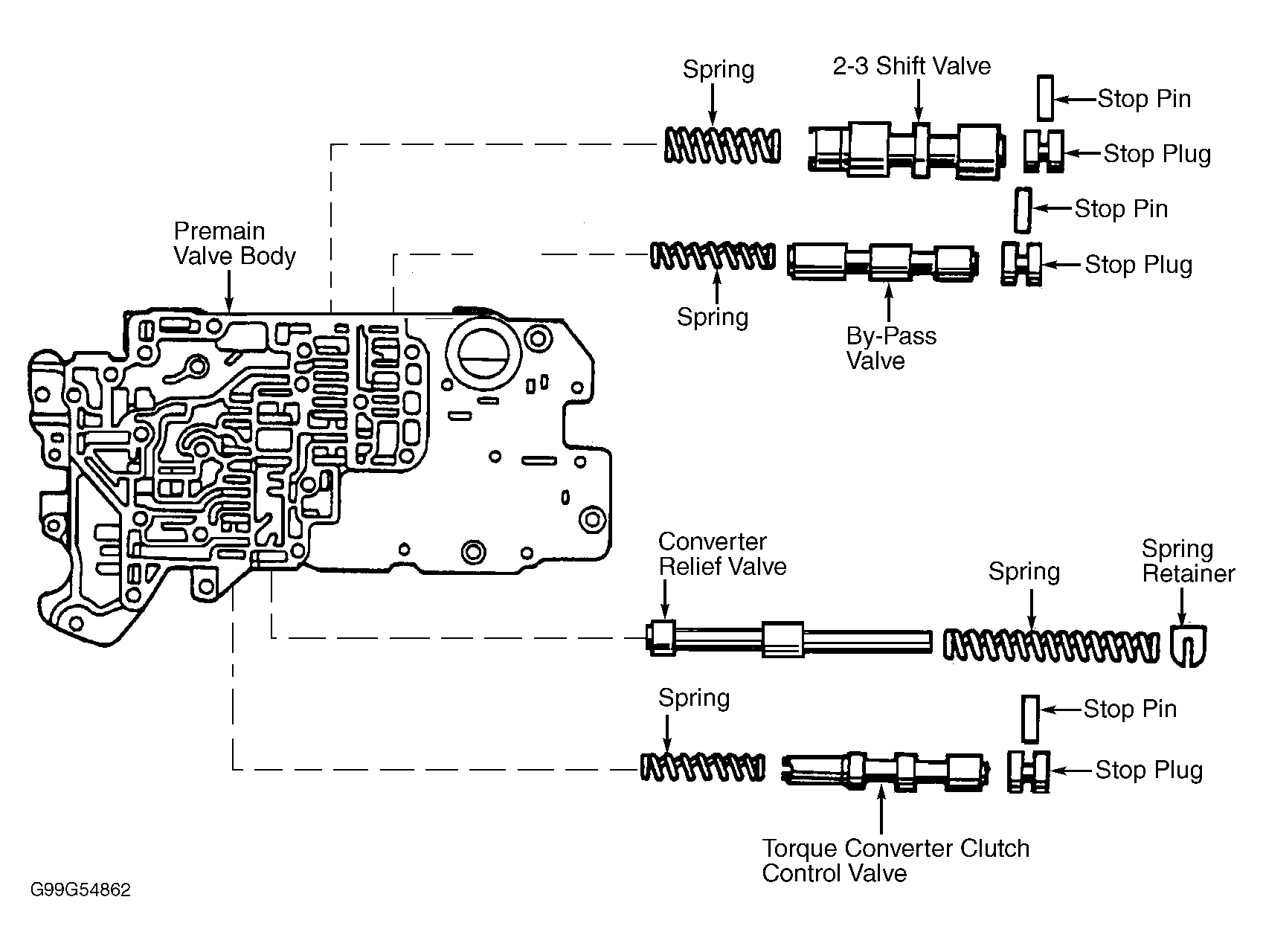

Fig 3: Exploded View Of Premain Valve Body

Courtesy of FORD MOTOR CO.
