Engine Compartment Fuse/Relay Box

NOTE: Engine compartment fuse/relay box is located on driver's side of engine compartment. See Fig 1 .

Fig 1: Locating Engine Compartment Fuse/Relay Box

Courtesy of KIA MOTORS AMERICA, INC.

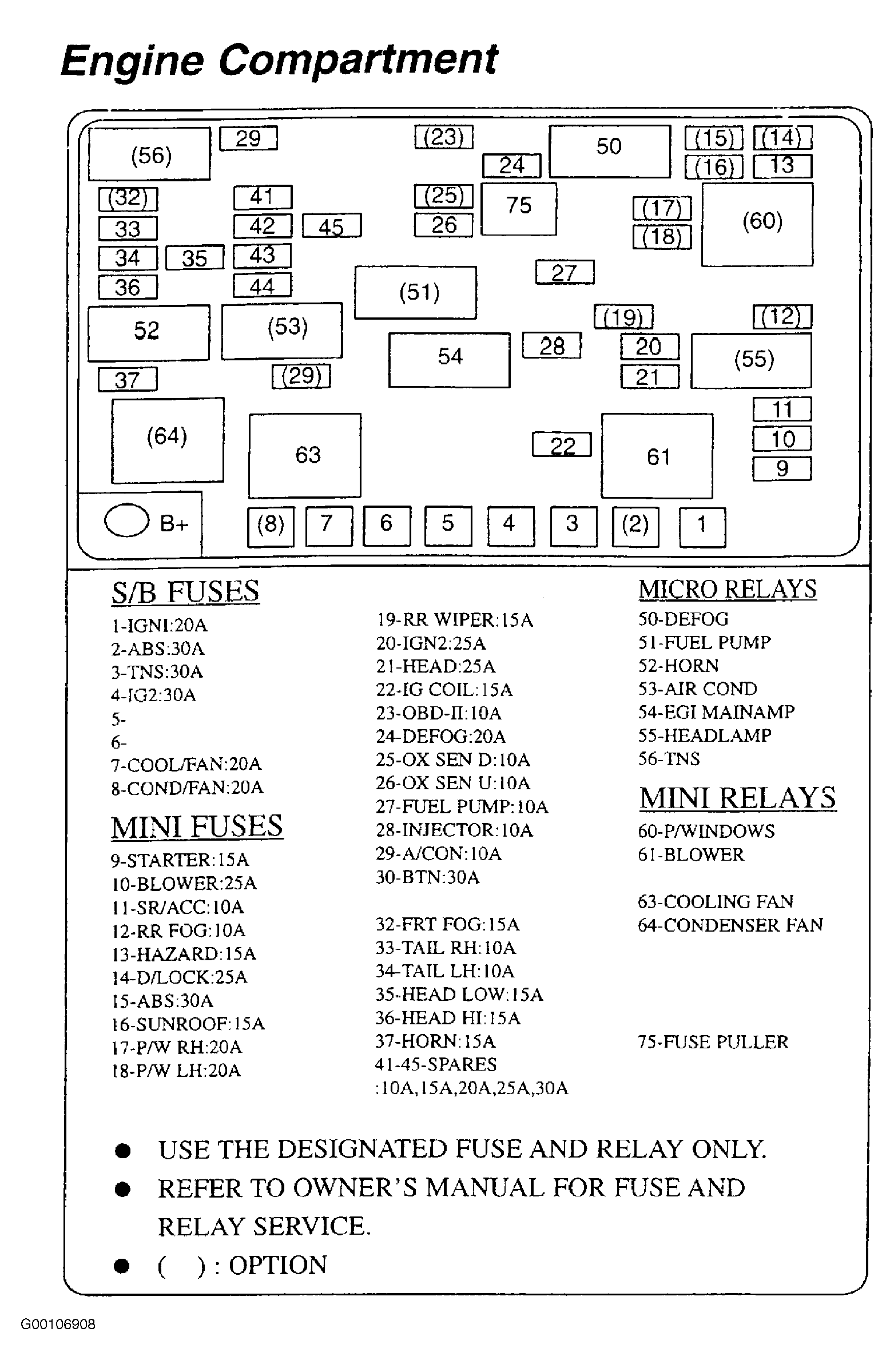

Fig 2: Identifying Engine Compartment Fuse/Relay Box Components

Courtesy of KIA MOTORS AMERICA, INC.
