Shift fork and shift rod assembly

Shift to 2nd gear and position shift fork and shift rod assembly as shown in illustration.

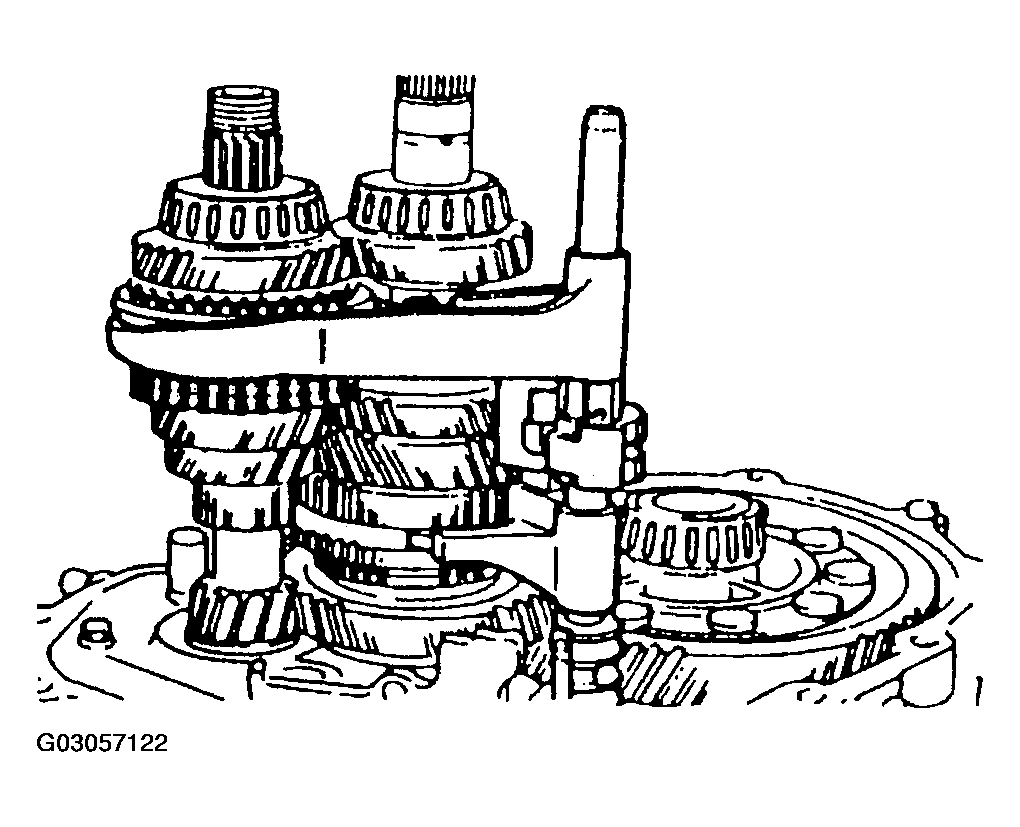

Fig 1: Positioning Shift Fork & Shift Rod Assembly
Insert spring seat and spring into reverse lever shaft, install detent ball, and place a flat gasket scraper against it.
With edge of control end against scraper, push control end in direction of arrow so that detent ball goes into shaft. This will line up rod with shift rod coupling hole in clutch housing.

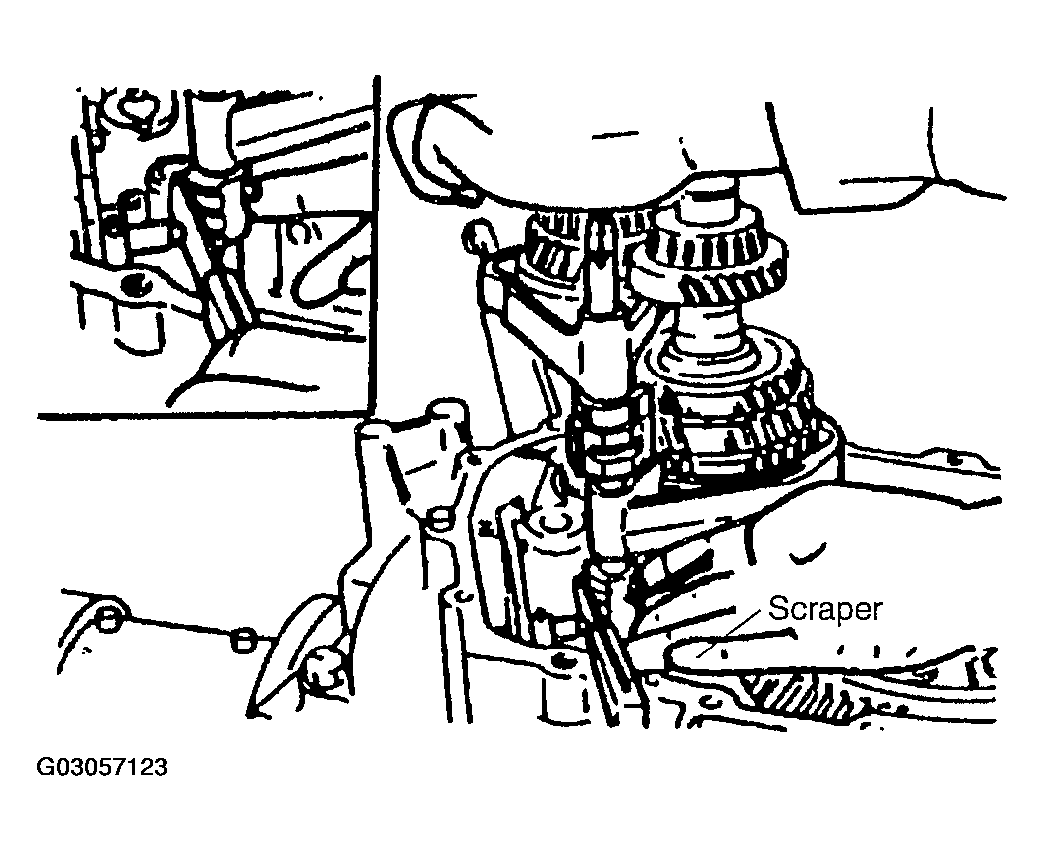

Fig 2: Aligning Rod With Shift Rod Coupling Hole
Set each clutch hub sleeve to neutral position, and tap shift rod from above so that detent ball goes into center groove (of three grooves in control end).
Pull ball part of control end forward so that detent ball goes into recess in center groove.

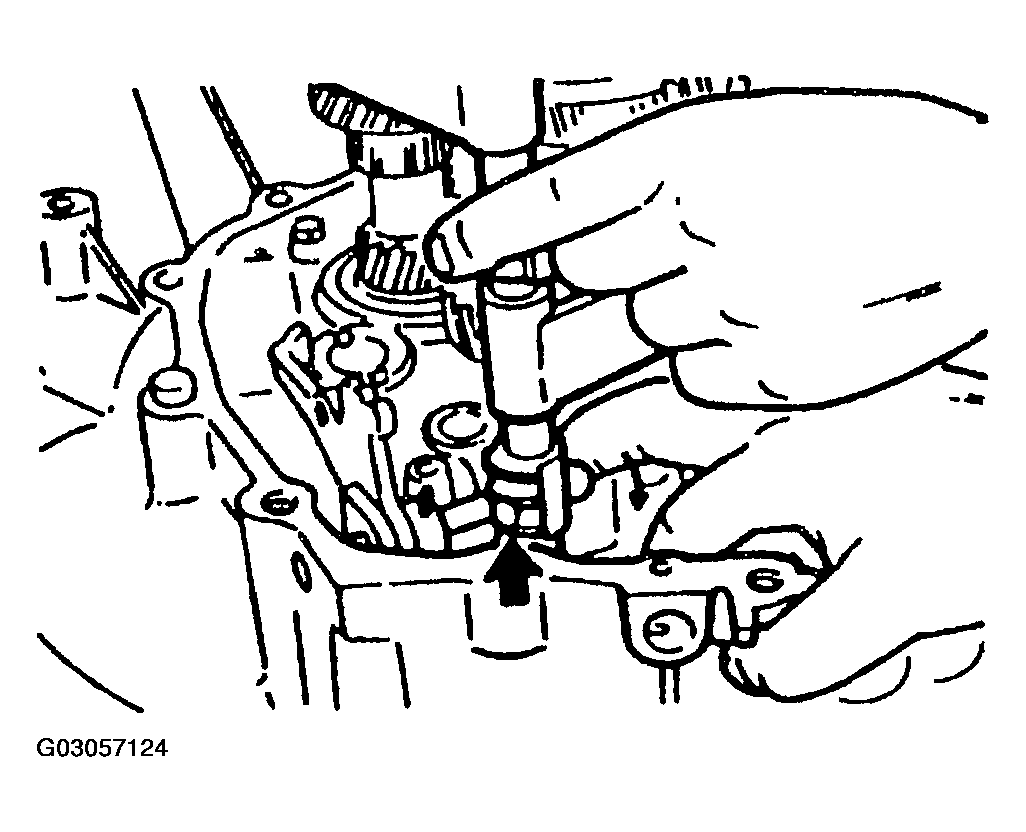

Fig 3: Pulling Ball Part Of Control End Forward
