Oil Change

Raise vehicle and support it with safety stands.
NOTE: Keep vehicle level when checking oil level.
Remove drain plug at bottom of transaxle case and drain fluid into suitable container.

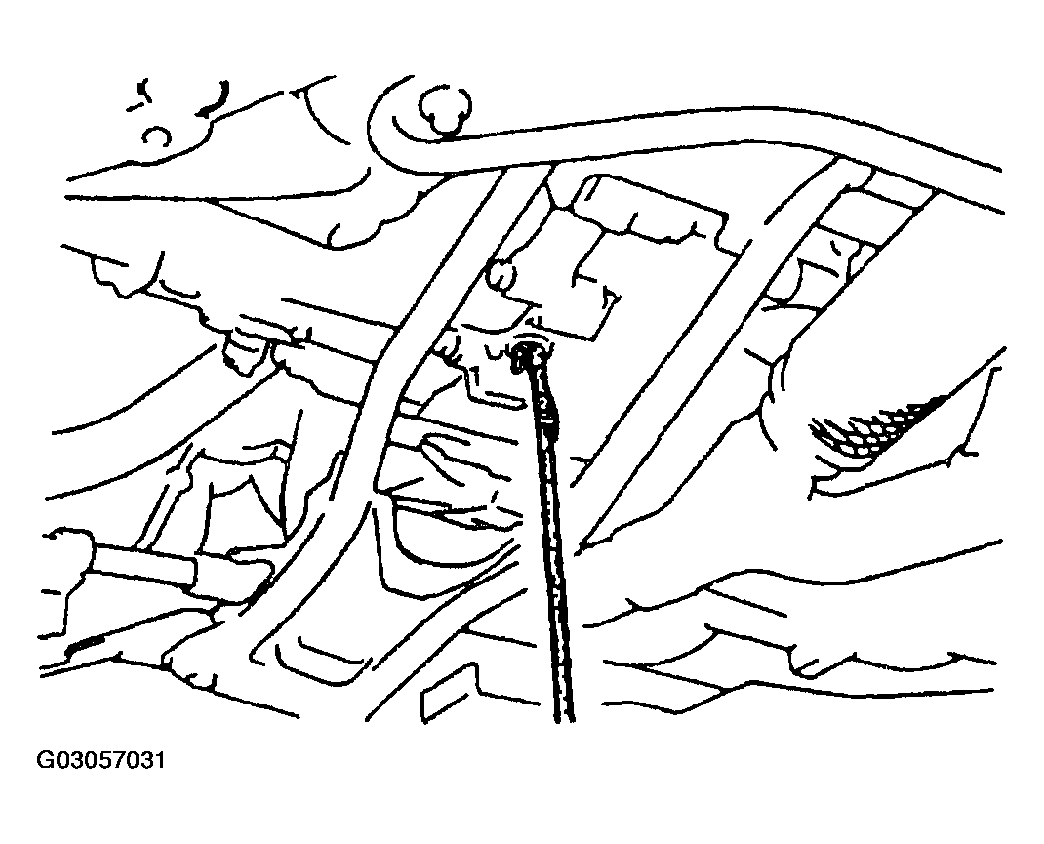

Fig 1: Draining Transaxle Fluid
Install new washer on drain plug and reinstall plug in case.
Tightening torque: 29 ~ 43 lb. ft. (40-58 N.m, 4.0-6.0 kg-m)
Remove oil level plug from transaxle case.
Add specified amount and type of oil into oil level plug hole until level reaches bottom of hole.

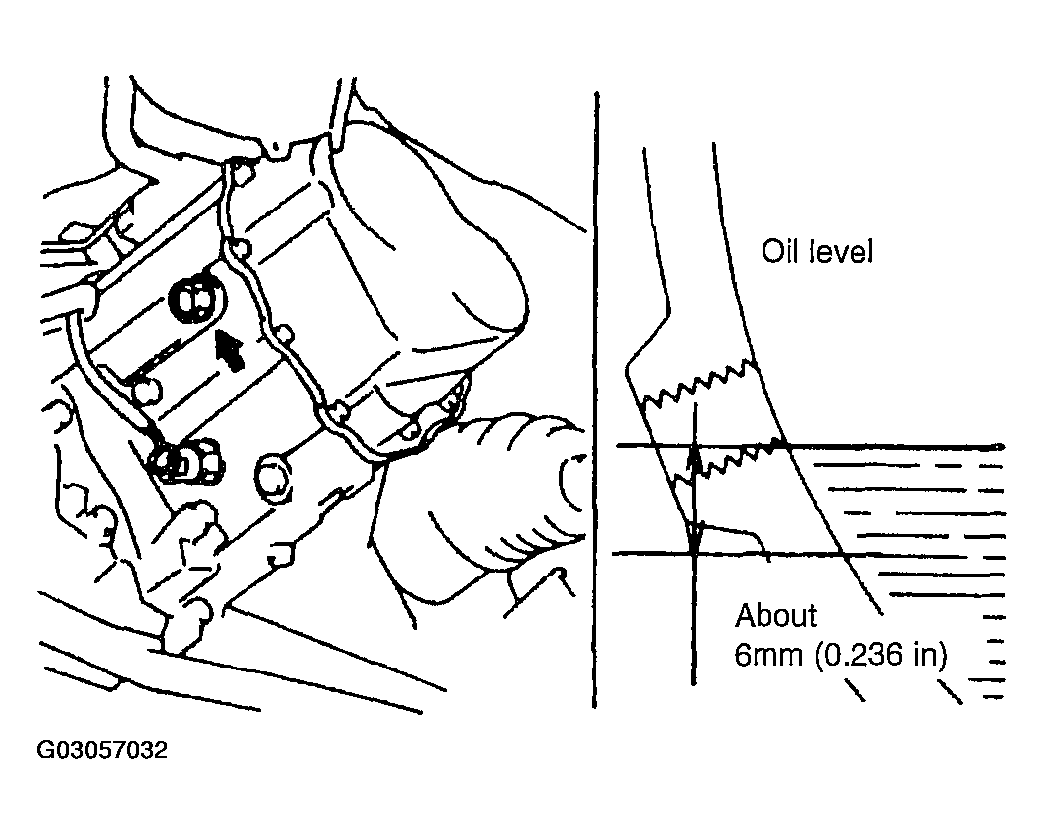

Fig 2: Locating Oil Level Plug

Specified oil:

Grade: API Service GL-4

Viscosity: SAE 75W-90(TGO-6)

Capacity: 2.9 US qt. (2.71, 2.4 Imp qt)
Install new washer on plug and reinstall plug in case.
Tightening torque: 29 ~ 43 lb. ft. (40-58 N.m, 4.0-6.0 kg-m)
Warm up vehicle until transaxle oil reaches its normal temperature, then check for leakage of transaxle oil.
Lower vehicle.
