Clutch Pedal: Components

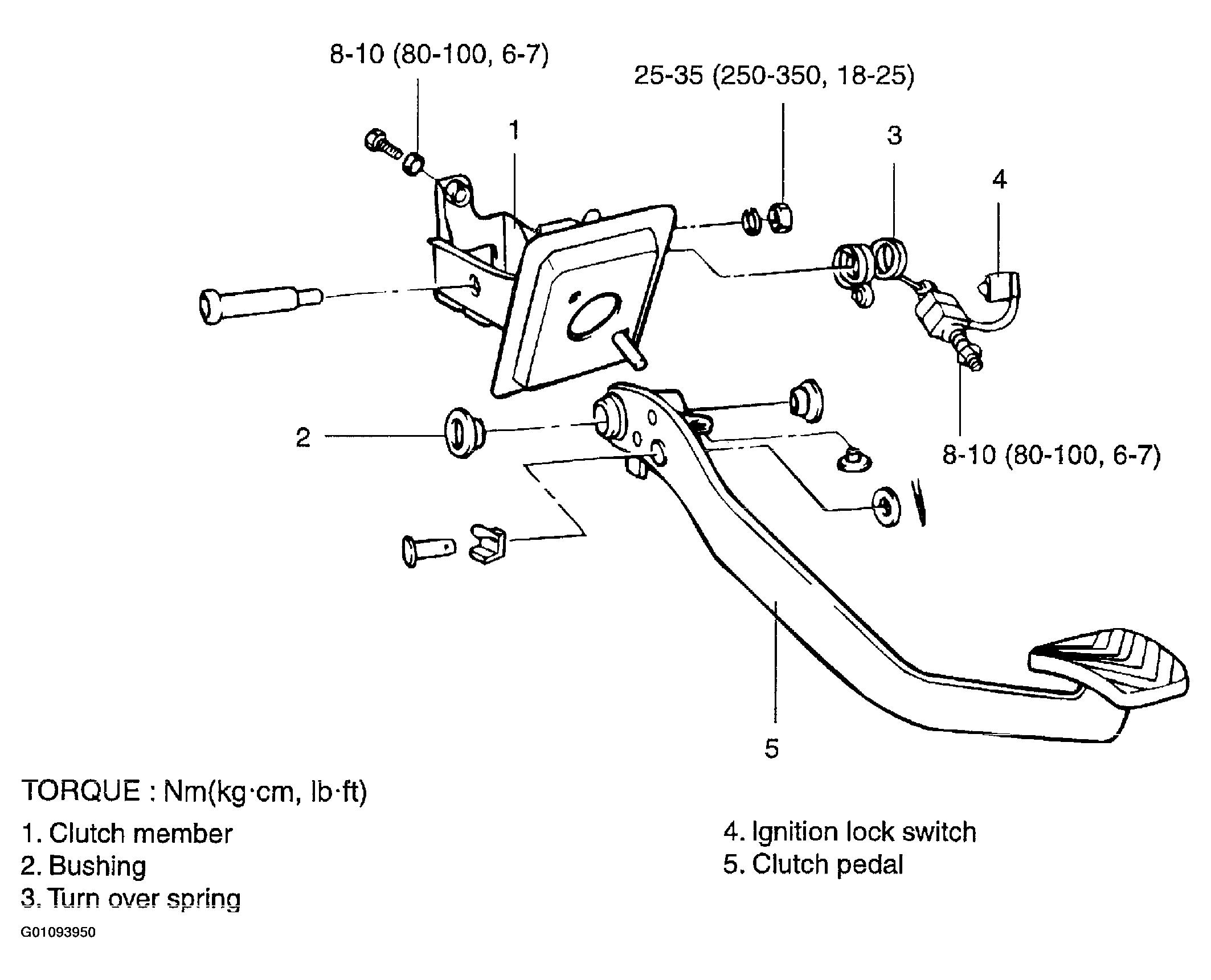

Fig 1: Illustrating Clutch Pedal Components
G01093950Courtesy of KIA MOTORS AMERICA, INC.
