FixVault
Home
›
Kia
›
2002
›
Rio Base, Automatic
›
Repair and Diagnosis (Single Page)
›
Steering
›
Power Steering
›
Steering System
›
General
›
Troubleshooting Guide
›
Power Steering
Power Steering

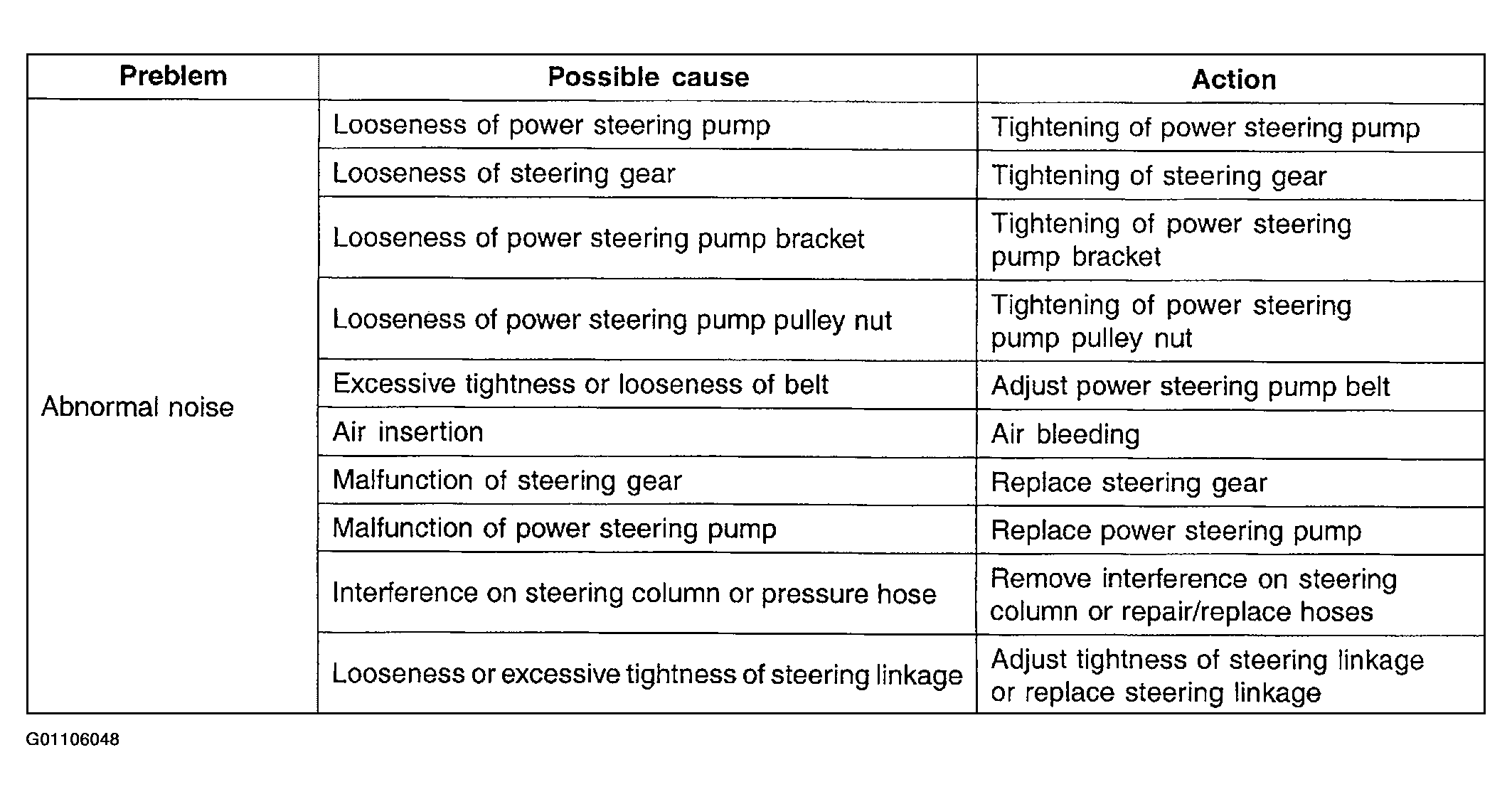

Fig 1: Power Steering Troubleshooting Guide (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

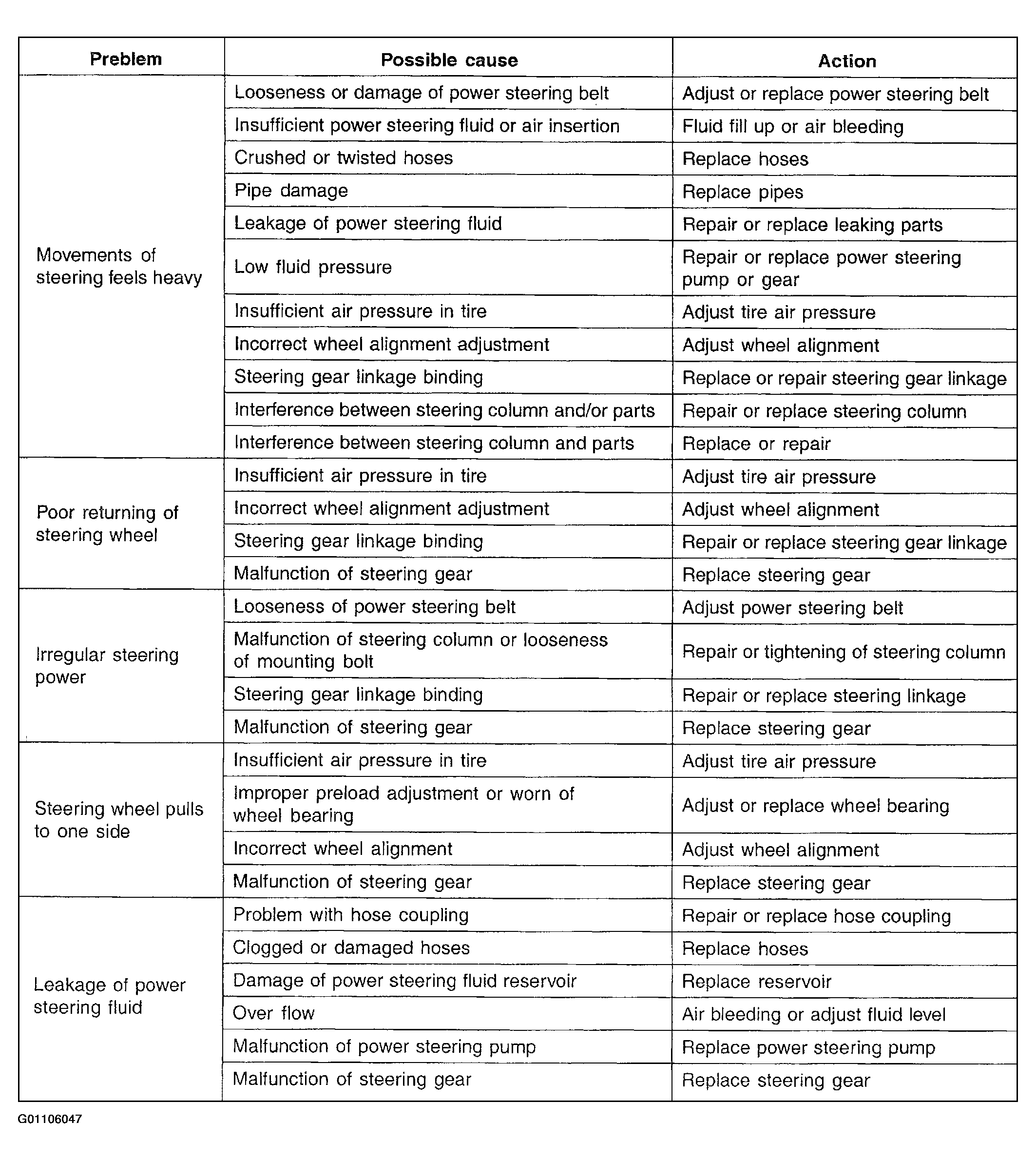

Fig 2: Power Steering Troubleshooting Guide (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
