Engine Coolant Sensor

  1. Check coolant sensor resistance. See Fig 1

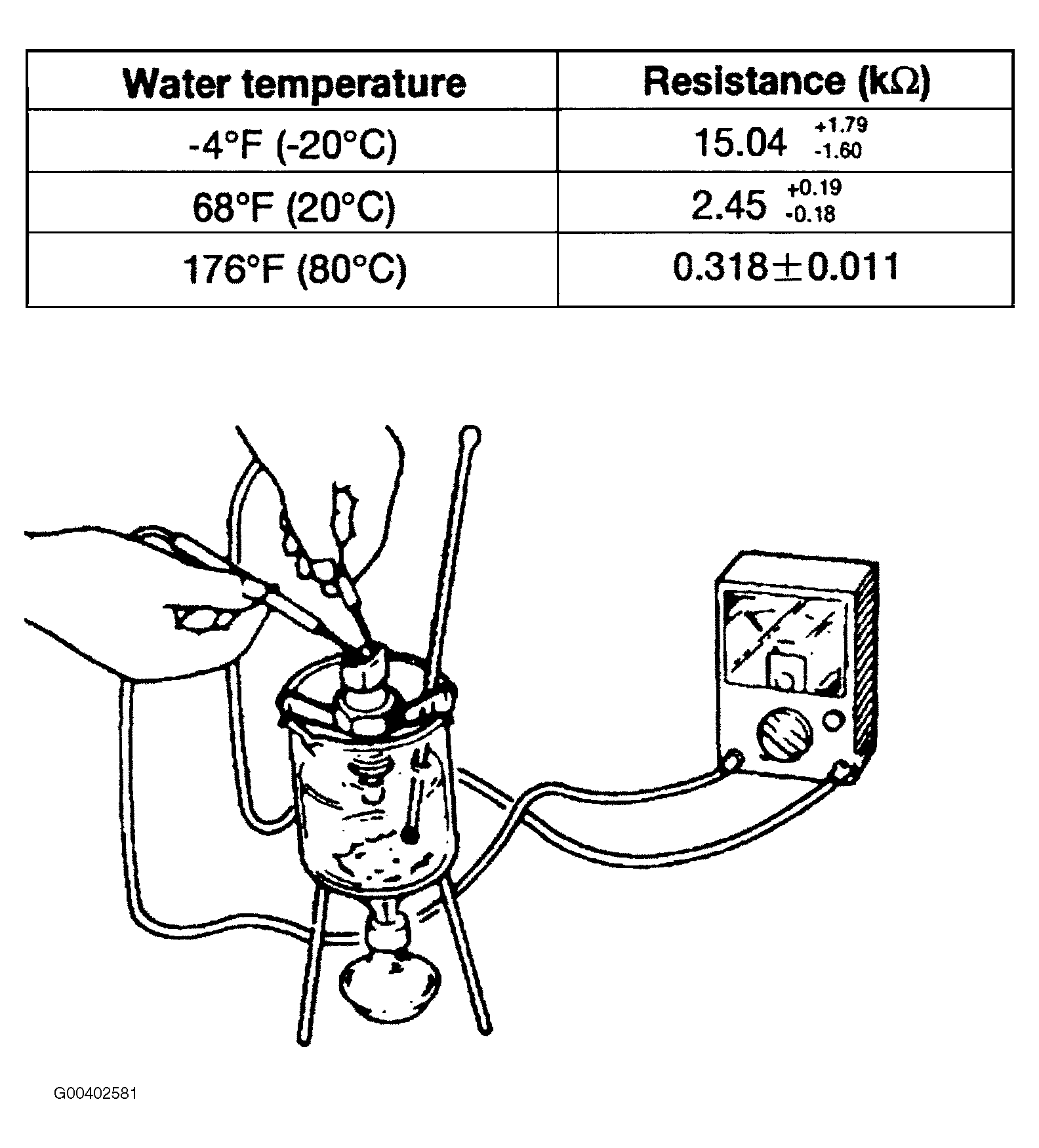

    Fig 1: Testing Engine Coolant Sensor
    G00402581Courtesy of KIA MOTORS AMERICA, INC.
  2. If resistance is not as specified, replace engine coolant sensor.
