Passenger Compartment Fuse Box

NOTE: Passenger compartment fuse box is located on left side of instrument panel, to left of steering wheel. See Fig 1 .

Fig 1: Locating Passenger Compartment Fuse Box

Courtesy of KIA MOTORS AMERICA, INC.

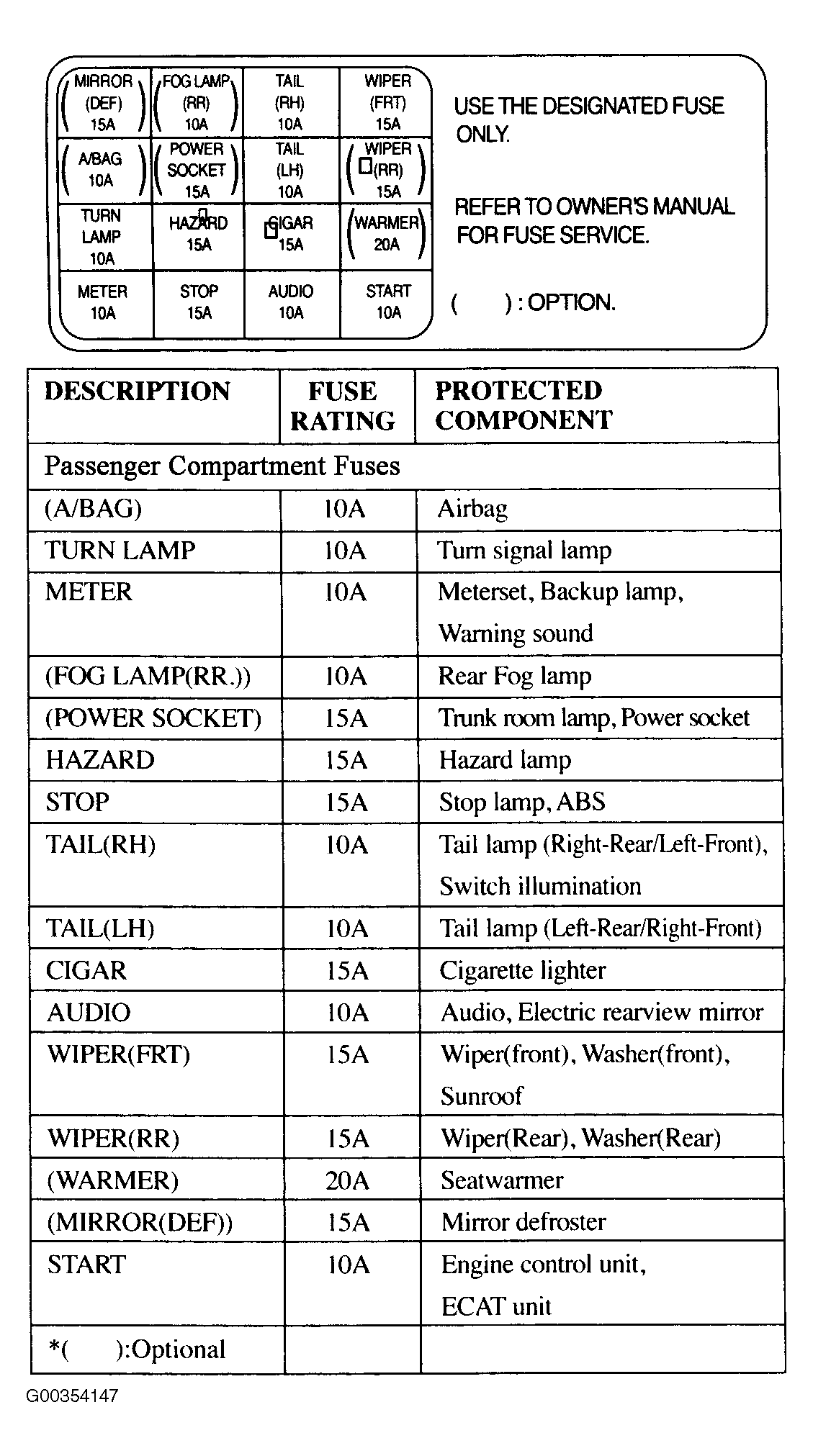

Fig 2: Identifying Components On Passenger Compartment Fuse Box

Courtesy of KIA MOTORS AMERICA, INC.

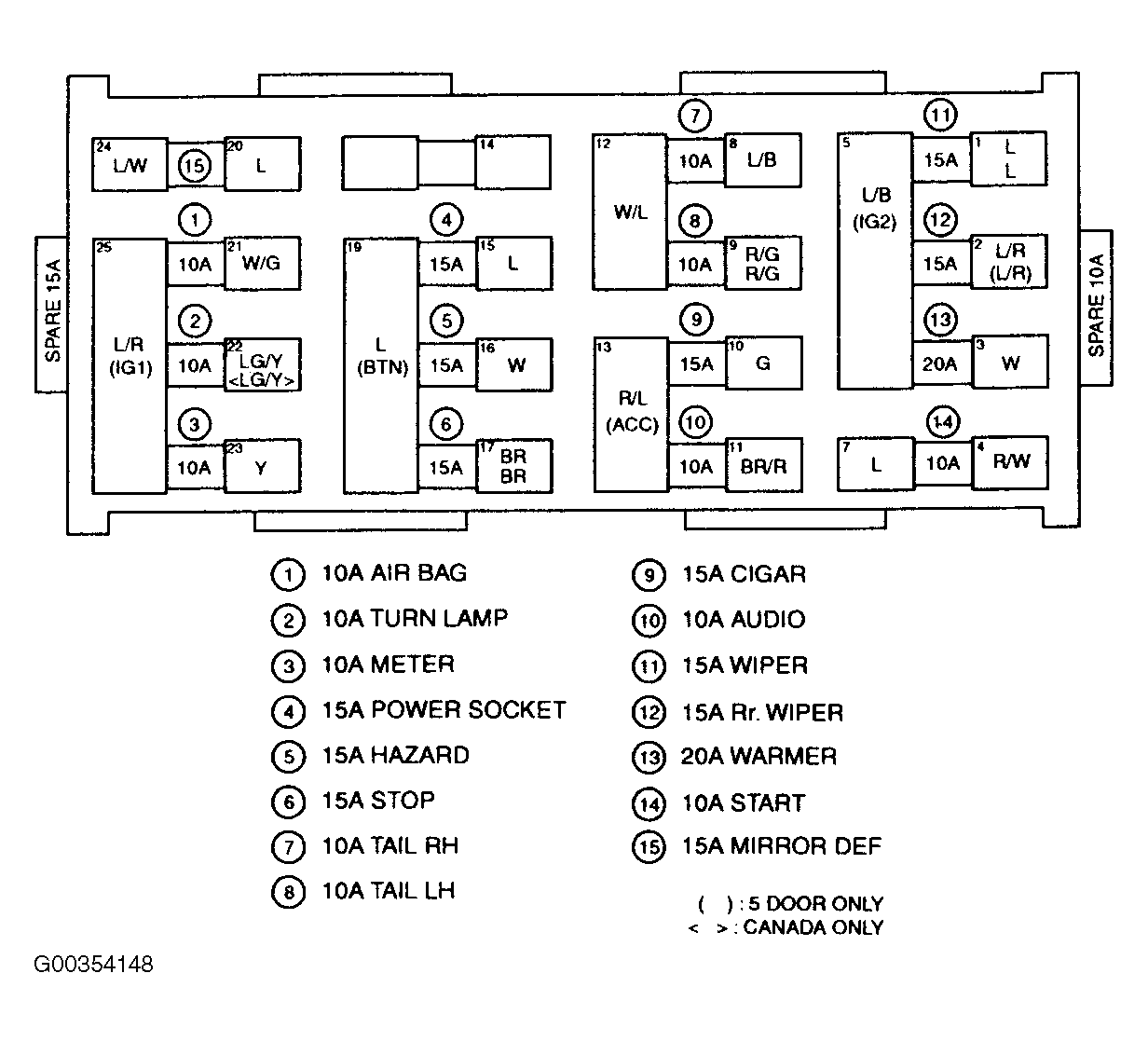

Fig 3: Identifying Connectors On Back Side Of Passenger Compartment Fuse Box

Courtesy of KIA MOTORS AMERICA, INC.
