Brake Band: Disassembly

WARNING: This page is about a different car, the 2001 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in order shown in Fig 1 .

NOTE: Use a piece of wire to secure 2-4 brake band so that it is not damaged by being allowed to fully expand.

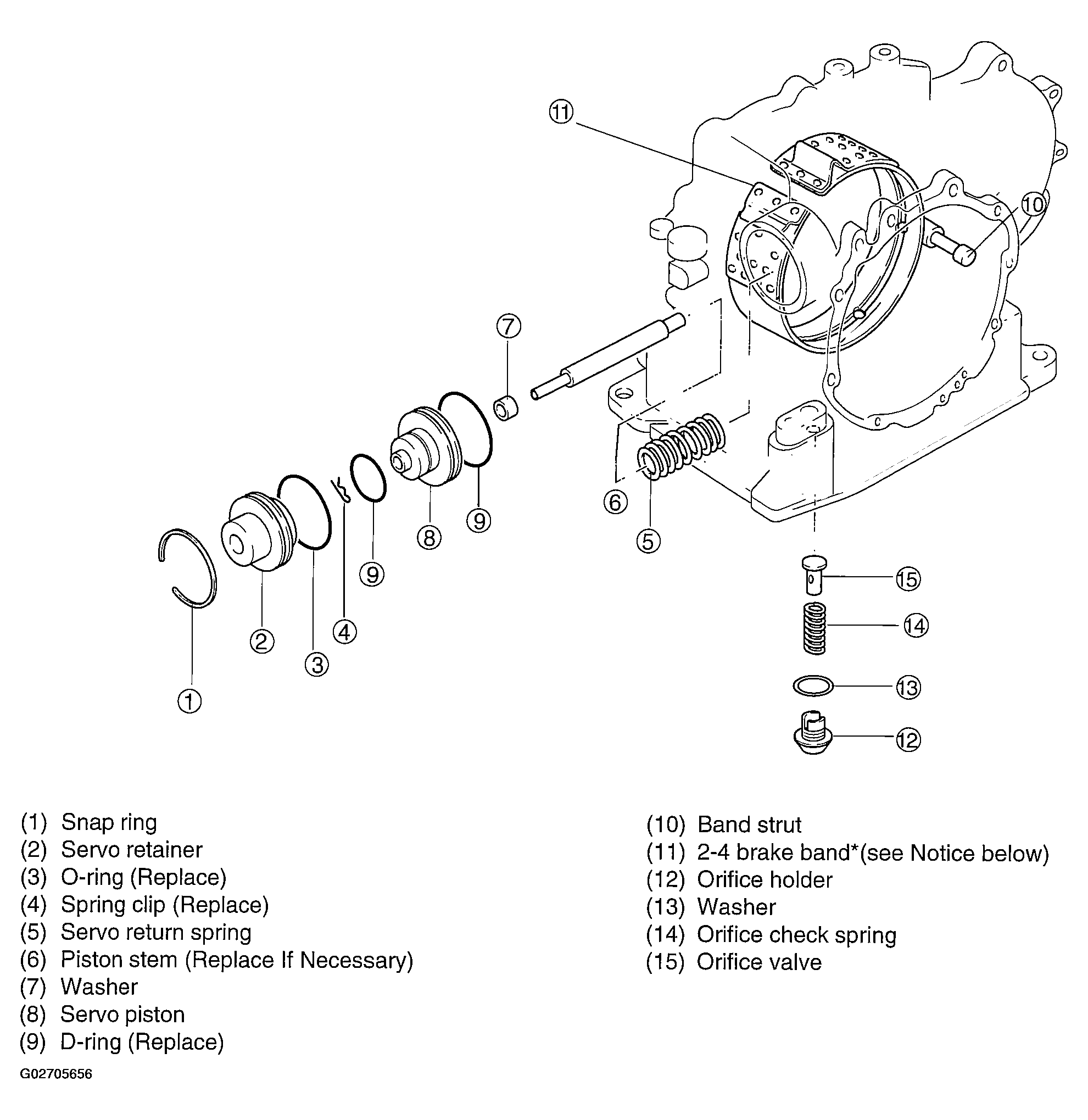

Fig 1: Exploded View Of Brake Band & Servo Components

Fig 2: Installing Wire To Secure 2-4 Brake Band
