Output Gear: Reassembly

WARNING: This page is about a different car, the 2001 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.

Press new bearings onto output gear with suitable tools.

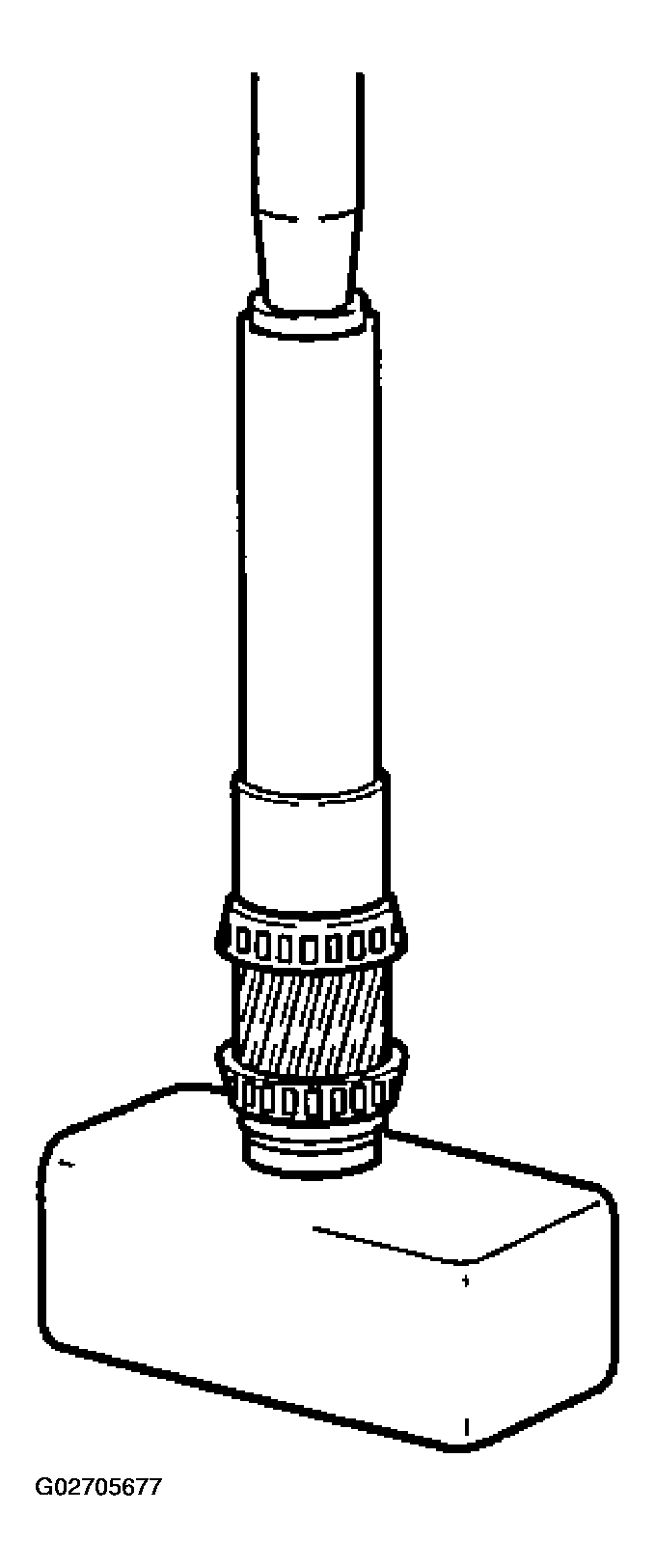

Fig 1: Pressing Bearings Onto Output Gear
Apply ATF to new seal rings and install them to each side of output gear.

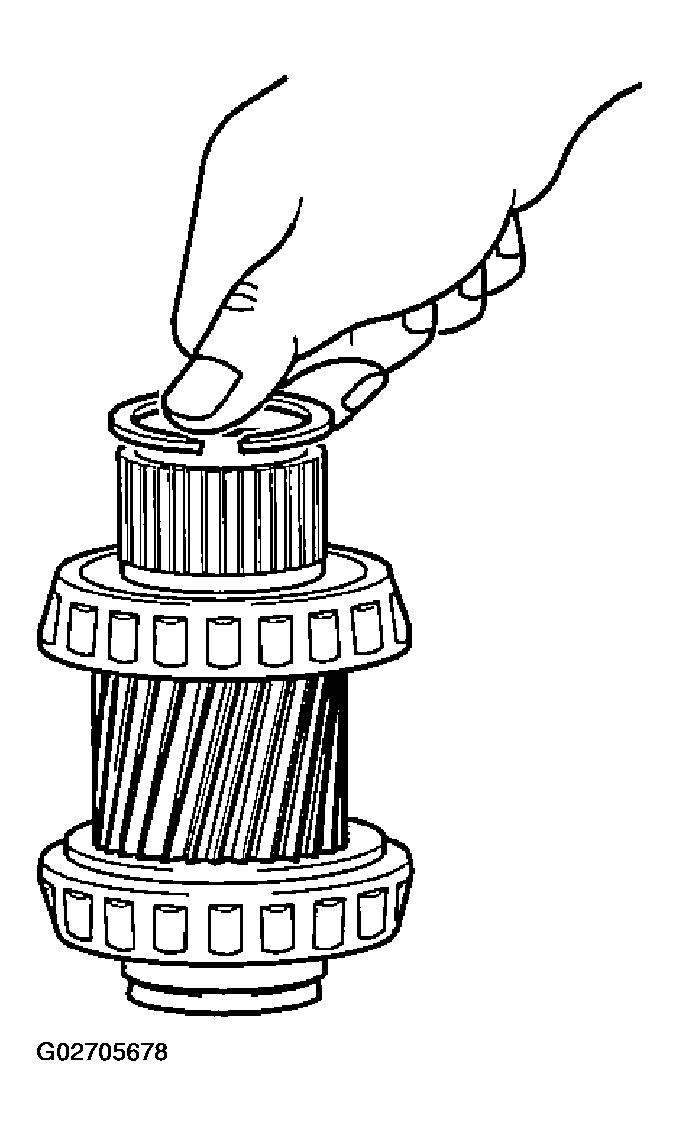

Fig 2: Installing Seal Rings Onto Output Gear
