Oil Change

Raise vehicle and support it with safety stands.
NOTE: Keep vehicle level when checking oil level.
Remove drain plug at bottom of transaxle case and drain fluid into suitable container.
Tightening torque:

29~43 lb.ft (40~58 N.m, 4.0~6.0 kg.m)

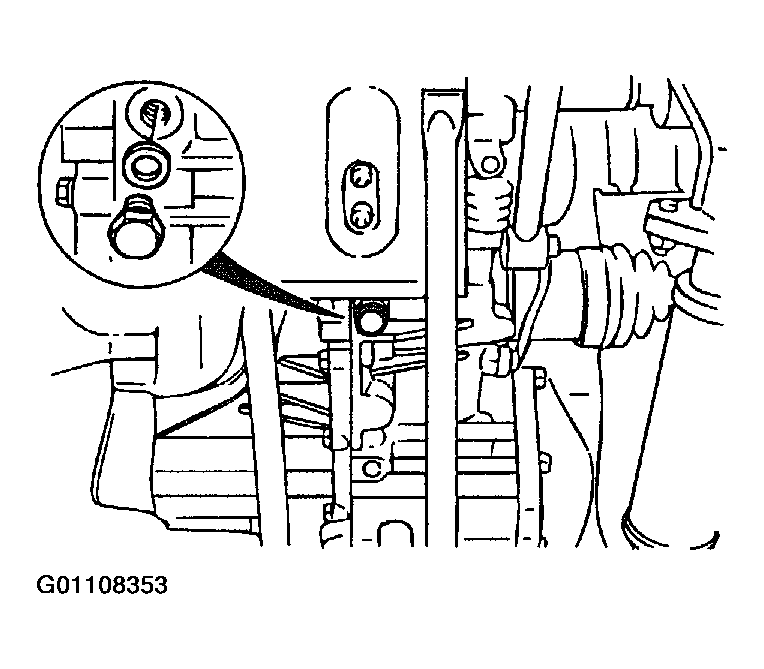

Fig 1: Draining Transmission Fluid
Courtesy of KIA MOTORS AMERICA, INC.
Install new washer on drain plug and reinstall plug in case.
Add specified amount and type of oil into the speedo driven gear.
Specified oil:

Grade: API Service GL-4

Viscosity: SAE 75W-90 (Fill-for-life)

Capacity: 2.96 US qt (2.8$$ , 2.46 lmp.qt)

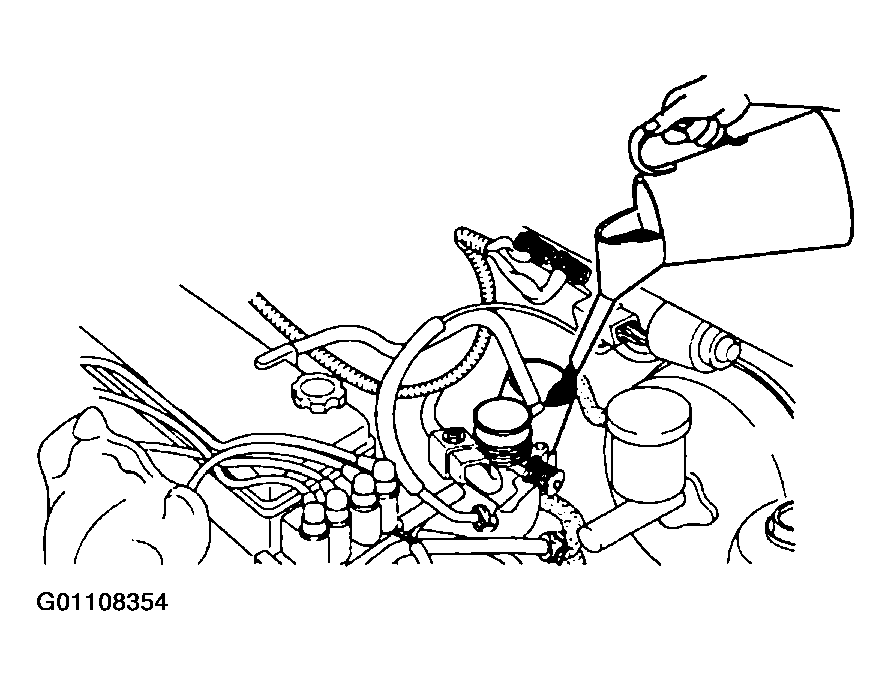

Fig 2: Filling Transmission Fluid
Courtesy of KIA MOTORS AMERICA, INC.
Warm up vehicle until transaxle oil reaches its normal temperature, then check for leakage of transaxle oil.
Lower vehicle.
