Lubrication System
›
Components
Lubrication System: Components

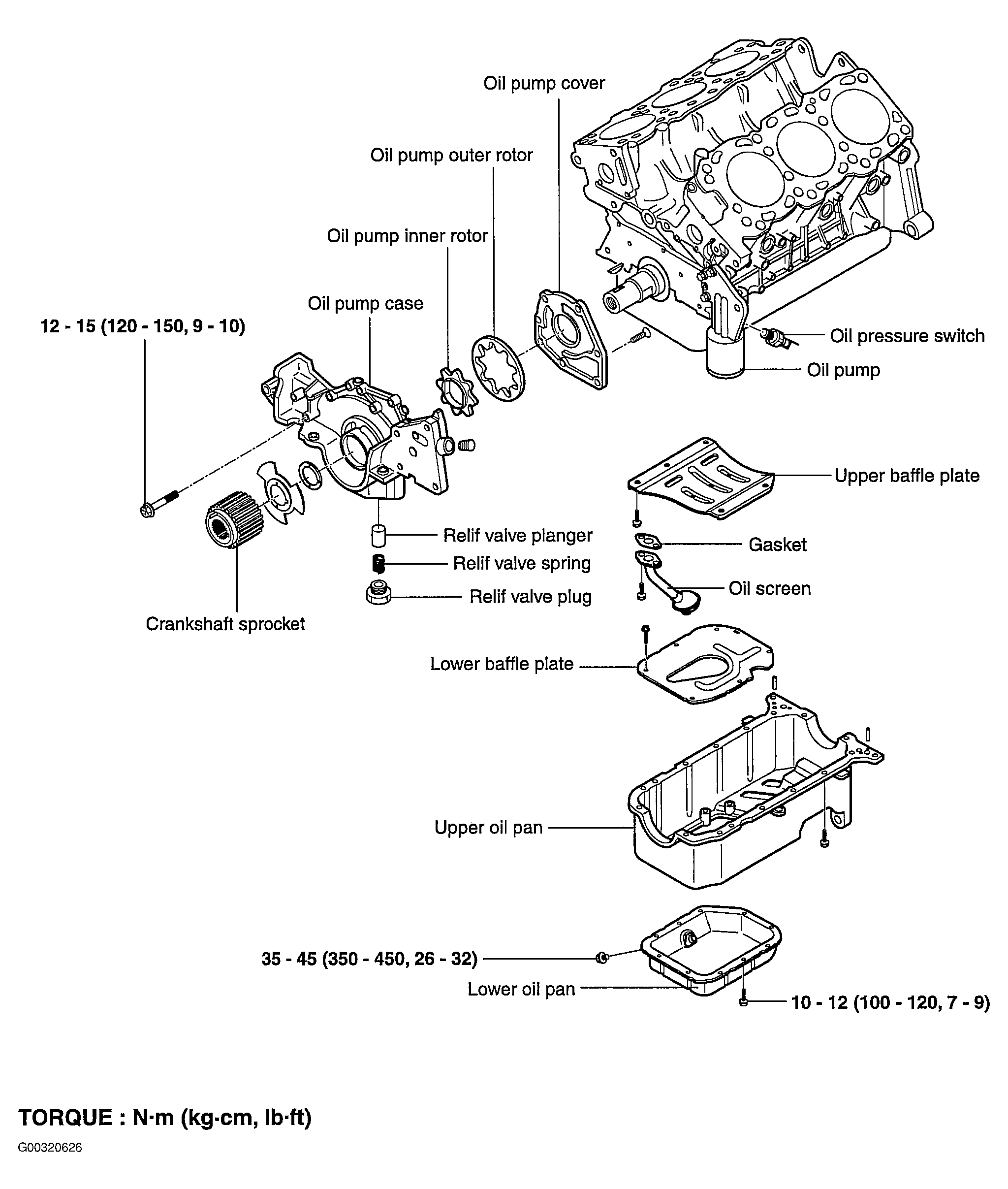

Fig 1: Exploded View Of Oil Pump & Oil Pan
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
